Mfr Part #:

LW163C-S-C

Mfr Name: Carlisle Interconnect Technologies

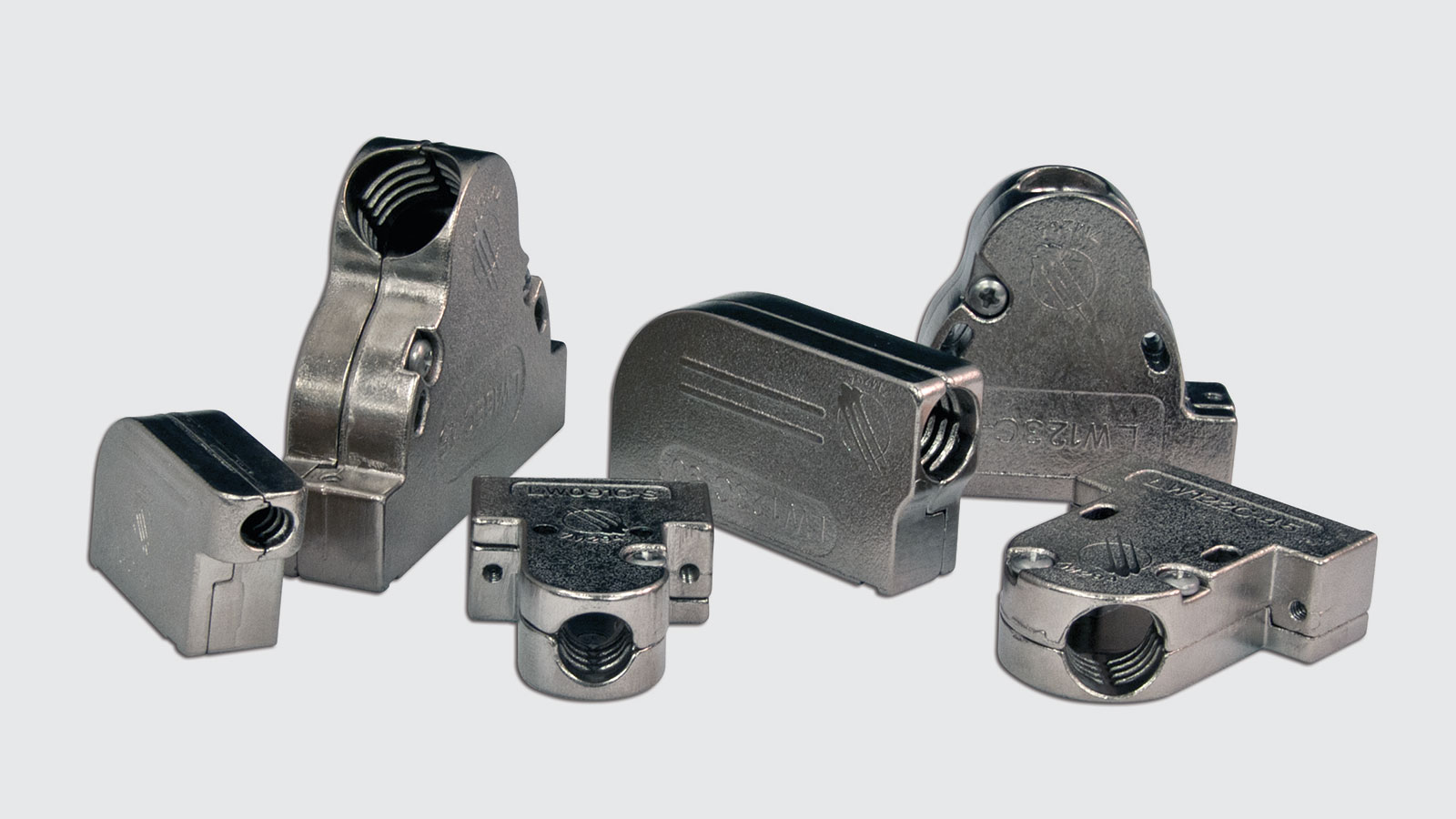

The Amphenol CIT LW163C-S-C is a lightweight D-Sub backshell designed for weight-sensitive applications. It offers effective EMI shielding and a compact design.

✓ Total Stock: 468 pcs

$ Price Range: $1.00

LW163C-S-C Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	468 pcs On Request	468 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LW163C-S-C Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Carlisle Interconnect Technologies
Design	Compact and efficient design maximizes internal space
Features	Straight, 45° & 90° exit
Material	Die-Cast Aluminum
Mounting Type	Front Panel Mount
Shell Size	3/B
Weight	28.5 g

View Similar Products (0)

LW163C-S-C Description

Short technical summary and product information.

The Amphenol CIT LW163C-S-C is part of the lightweight series of D-Sub backshells, engineered to minimize weight while maximizing internal space and EMI shielding. This makes it an ideal solution for high-end commercial and aviation cables where weight and shielding are critical.

Key features include a tapped body style, front panel mount capability, and slots for mounting stability. The backshell accommodates conventional and moisture-proof MIL-STD-24308 D-Sub connectors and is designed for ease of manufacturing and rework. Its high-precision manufacturing ensures a minimal air gap for very effective EMI shielding.

Available in various shell sizes and materials, including die-cast aluminum and composite, this backshell offers robust cable strain relief to prevent damage to individual wires and electrical contacts. Custom designs are also available for specific application requirements like tight space limitations or bending radii.

LW163C-S-C Quick Information

Product Type: D-Sub Backshell

Series: Lightweight Series

Canonical Name: Amphenol CIT Compact D-Sub Backshell

Subcategory: D-Sub Backshell

LW163C-S-C Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LW163C-S-C Estimated Pricing

Qty	Low	High
1+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

LW163C-S-C Features

Lightweight design minimizes overall cable weight.
Maximizes internal space and provides effective EMI shielding.
Accommodates MIL-STD-24308 D-Sub connectors.
Front panel mount capability for secure installation.
Designed for ease of manufacturing and rework.

LW163C-S-C Applications

Ideal for aerospace video and Ethernet.
Provides critical EMI protection.
Suitable for weight-sensitive applications.
Used in high-end commercial aviation cables.

LW163C-S-C FAQs

7 frequently asked questions generated from this part’s specifications.

What is the shell size for the LW163C-S-C backshell?

The shell size for the LW163C-S-C backshell is 3/B.

What is the cable diameter range for the LW163C-S-C backshell?

The cable diameter range for the LW163C-S-C backshell is 0.2 to 0.48 inches.

What materials are available for the LW163C-S-C backshell?

The LW163C-S-C backshell is available in Die-Cast Aluminum and Composite.

What exit angles are offered for Amphenol CIT Compact D-Sub Backshells?

Amphenol CIT Compact D-Sub Backshells are offered with Straight, 45°, and 90° exit angles.

How does the weight of these backshells compare to industry standards?

These backshells are approximately 60% lighter than comparable industry standard products.

What type of D-Sub connectors can be accommodated?

These backshells accommodate conventional and moisture-proof MIL-STD-24308 D-Sub connectors.

Are custom designs available for these backshells?

Yes, custom designs are available to suit special application requirements such as tight space limitations or bending radii.
