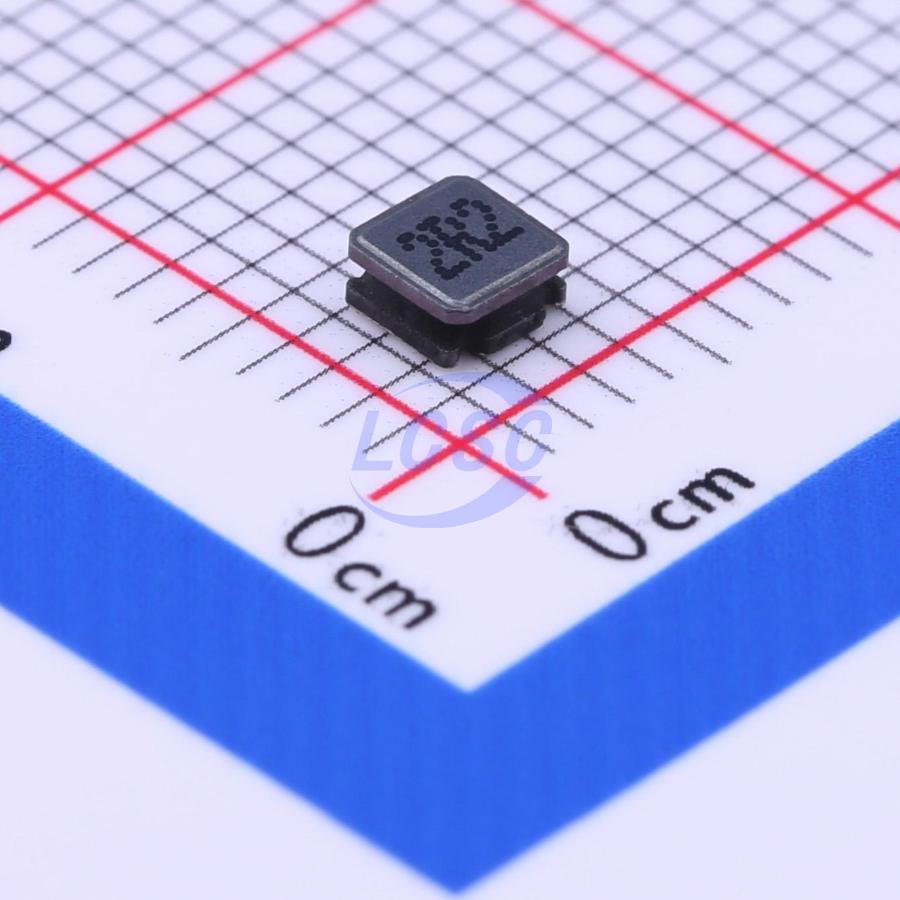

LVS303015-2R2M-N The Pulse Electronics LVS303015-2R2M-N is a fixed inductor with a 2.2uH inductance and 20% tolerance. It features a compact 3x3x1.5mm SMD package.
Mfr Part #:

LVS303015-2R2M-N

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics LVS303015-2R2M-N is a fixed inductor with a 2.2uH inductance and 20% tolerance. It features a compact 3x3x1.5mm SMD package.
✓ Total Stock: 190 pcs
$ Price Range: $0.04

LVS303015-2R2M-N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
190 pcs
On Request
190 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LVS303015-2R2M-N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
DC Resistance (DCR)
Dimensions
Inductance
Mounting Type
View Similar Products (0)

LVS303015-2R2M-N Description

Short technical summary and product information.

The Pulse Electronics LVS303015-2R2M-N is a surface-mount fixed inductor designed for various electronic applications. It offers an inductance value of 2.2 microhenries (uH) with a tolerance of 20%. The component has a typical DC resistance (DCR) of 79 milliohms (mOhm).



This inductor is housed in a 3030 package, measuring 3mm by 3mm with a height of 1.5mm, making it suitable for space-constrained designs. It is specified with a current rating of 1.2A for saturation and 2.3A for RMS.



Applications for this component include consumer electronics, industrial control, communication equipment, and automotive electronics. Its surface-mount design facilitates automated assembly processes.

LVS303015-2R2M-N Quick Information

Product Type: Fixed Inductor
Series: LVS
Canonical Name: Pulse Electronics LVS303015-2R2M-N Inductor
Subcategory: Fixed Inductor

LVS303015-2R2M-N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LVS303015-2R2M-N Estimated Pricing

Qty Low High
1+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

LVS303015-2R2M-N Features

  • 2.2 µH inductance with 20% tolerance.
  • 1.2A saturation and 2.3A RMS current.
  • Low 79 mΩ DC resistance (DCR).
  • Compact 3030 SMD package (3mm x 3mm).
  • Surface mount design for automated assembly.

LVS303015-2R2M-N Applications

  • Power management in DC-DC converters.
  • Voltage regulation and filtering circuits.
  • Low-profile portable electronic devices.
  • Battery-powered systems requiring high efficiency.
  • Power supply input/output filtering.

LVS303015-2R2M-N FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the LVS303015-2R2M-N?

The inductance of the LVS303015-2R2M-N is 2.2 uH.

What is the tolerance of the LVS303015-2R2M-N inductor?

The tolerance for the LVS303015-2R2M-N inductor is 20%.

What is the DC Resistance (DCR) of the LVS303015-2R2M-N?

The typical DC Resistance (DCR) of the LVS303015-2R2M-N is 79 mOhm.

What are the dimensions of the LVS303015-2R2M-N?

The dimensions of the LVS303015-2R2M-N are 3mm x 3mm x 1.5mm.

What is the mounting type for the LVS303015-2R2M-N?

The mounting type for the LVS303015-2R2M-N is Surface Mount (SMD).
