| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,980 pcs
|
8980 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Minimum/Typical @ 20 °C) | |
| Halogen Free | |
| Height | |
| Interrupt Current (Maximum @ 120 VAC, 135 VDC) | |
| Interrupt Current (Maximum @ 240 VAC, 265 VDC) | |
| Lead Size | |
| Lead Spacing | |
| Length | |
| Max Power Dissipation | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width | |
| resistance (Maximum @ 20 °C) |

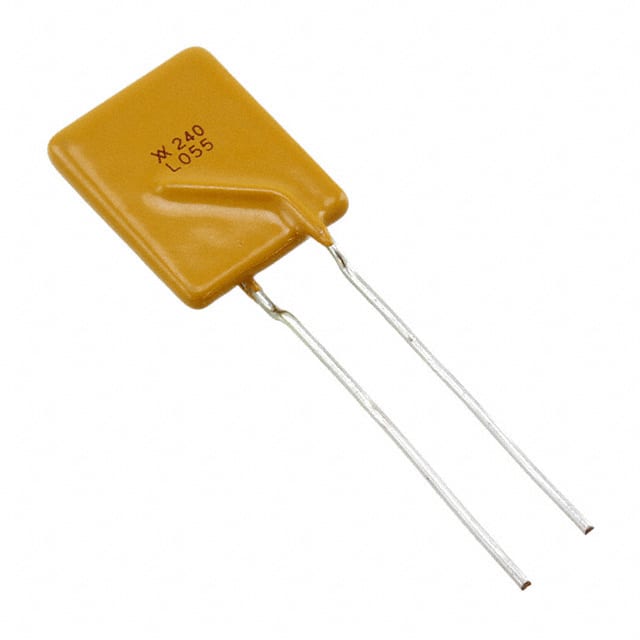

The Littelfuse LVR055K is a PolySwitch resettable Positive Temperature Coefficient (PTC) fuse designed to protect electrical circuits from overcurrent and overtemperature faults. It is rated for a 550mA operating current and a 240V (265V interrupt) voltage.
This device features a radial, disc package suitable for through-hole mounting. Its electrical characteristics include a resistance of 1.45 Ω and a time to trip of 26 seconds. The operating temperature range is -20°C to 85°C.
The LVR055K is RoHS and Halogen-free compliant, making it suitable for various applications in commercial and home appliances, including motors, transformers, and industrial controls. Its resettable nature offers a reliable protection solution compared to traditional fuses.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating current for the LVR055K is 550 mA.
The voltage rating of the LVR055K is 240V (265V interrupt).
The resistance of the LVR055K is 1.45 Ω.
The time to trip for the LVR055K is 26 seconds.
The operating temperature range for the LVR055K is -20°C to 85°C.
The LVR055K comes in a radial, disc package.
The LVR055K is mounted using the through-hole method.
