| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The LV8806QA-MH from ON Semiconductor is a fully integrated motor driver IC, combining control and power stage functionalities for Brushless DC (BLDC) motors. This device operates across a voltage range of 2V to 6V, delivering a continuous output current of 700mA. It features a PWM interface for precise control and is built using Bi-CMOS technology.

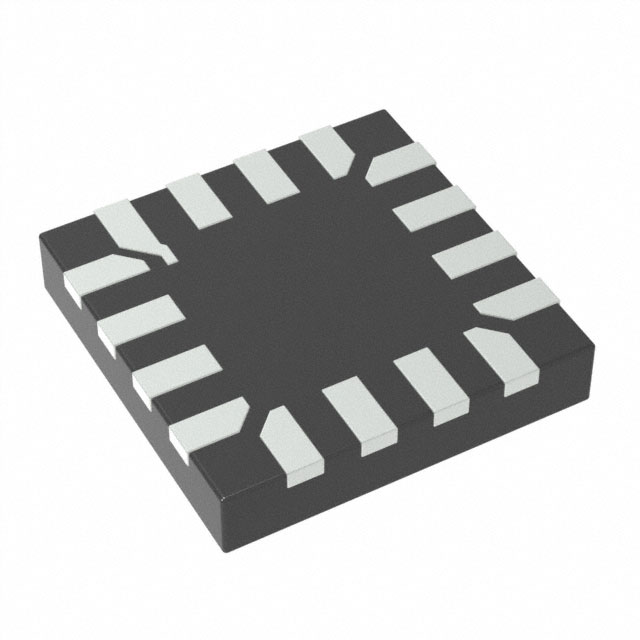

The IC is housed in a 16-UQFN package, suitable for surface mount applications. Its operating temperature range is -40°C to 95°C (TA), making it adaptable to various environmental conditions. The output configuration supports three half-bridge drivers, offering flexibility in motor control designs.
This motor driver is categorized under Motor Drivers, Controllers within the Power Management (PMIC) section of Integrated Circuits (ICs). Its general-purpose application makes it a versatile component for a wide array of electronic systems requiring efficient motor control.
Key specifications include its 2V-6V operating voltage, 700mA current capability, and PWM interface. The 16-UQFN package facilitates compact PCB layouts, and the -40°C to 95°C operating temperature ensures reliability in diverse applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2V to 6V.
700mA.
Brushless DC (BLDC) motor.
-40°C to 95°C.
16-UQFN (2.6x2.6mm) surface mount package.
PWM.
Three half-bridge outputs.
