| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,051 pcs
|
7051 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
2,774 pcs
|
2774 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Step Resolution | |
| Supplier Device Package | |
| Supply Voltage | |
| Technology | |
| Voltage |
The LV8729V-TLM-H from ON Semiconductor is a fully integrated motor driver IC designed for bipolar motors. It features a half-bridge output configuration capable of delivering up to 1.8A of current.
This device supports a wide load voltage range from 9V to 32V and a supply voltage range of 0V to 5V. It offers flexible step resolution from full step up to 1/128 microstepping, controlled via a parallel interface.

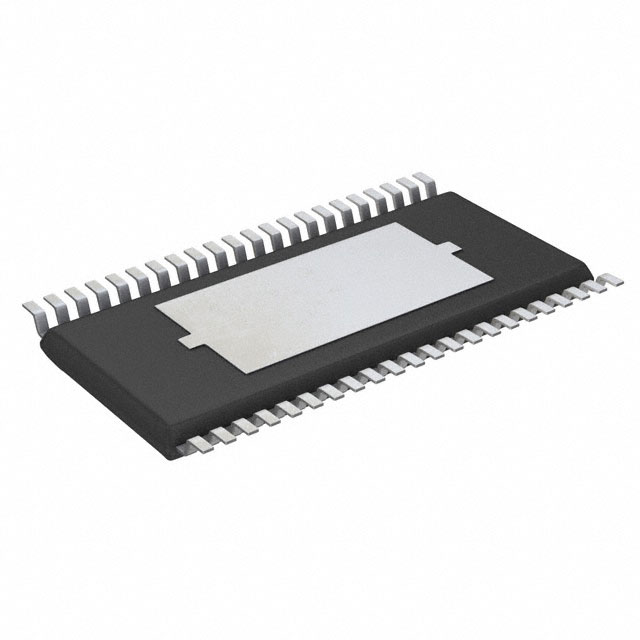

The LV8729V-TLM-H is built using BiCDMOS technology and is housed in a 44-SSOPK-EP package, suitable for surface mounting. Its operating temperature range is -30°C to 85°C (TA), making it suitable for general-purpose applications.
Key specifications include a 1.8A current output, 9V-32V load voltage, 0V-5V supply voltage, and a step resolution up to 1/128. The device is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 9V to 32V.
The supply voltage range is 0V to 5V.
It comes in a 44-LSSOP (0.220", 5.60mm Width) Exposed Pad package, also known as 44-SSOPK-EP.
The operating temperature range is -30°C to 85°C (TA).
The step resolution is 1/128 microstepping.
The output current rating is 1.8A.
It uses a parallel interface.
