LV8104V-TLM-H The On Semiconductor LV8104V-TLM-H is a motor driver IC designed for general purpose applications. It operates within a 16V to 28V range and is available in a Surface Mount package.
Mfr Part #:

LV8104V-TLM-H

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor LV8104V-TLM-H is a motor driver IC designed for general purpose applications. It operates within a 16V to 28V range and is available in a Surface Mount package.
✓ Total Stock: 2,000 pcs
$ Price Range: $2.25

LV8104V-TLM-H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LV8104V-TLM-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

LV8104V-TLM-H Description

Short technical summary and product information.

The LV8104V-TLM-H from On Semiconductor is a versatile motor driver integrated circuit. Designed for general-purpose applications, it supports a voltage range of 16V to 28V, making it suitable for various motor control tasks.



This Bi-CMOS technology device functions as a speed controller for Brushless DC (BLDC) motors. It features a parallel interface for control and an output configuration of Pre-Driver - Half Bridge (3). The operating temperature range is from -20°C to 80°C (TA).

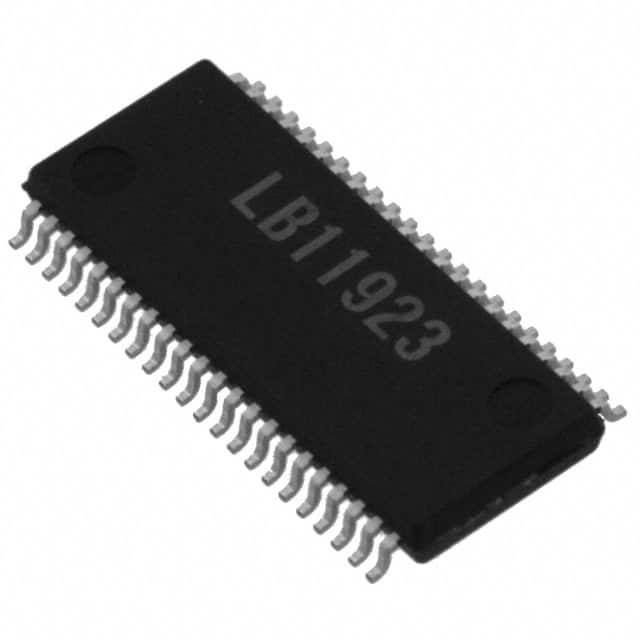

The component is housed in a 44-SSOP package, with a specific package designation of 44-LSSOP (0.220", 5.60mm Width). It is designed for surface mounting, facilitating integration into compact electronic designs. The RoHS status is reported as RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

LV8104V-TLM-H Quick Information

Product Type: Motor Driver IC
Canonical Name: LV8104V-TLM-H On Semiconductor Motor Driver IC
Subcategory: Motor Drivers, Controllers

LV8104V-TLM-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LV8104V-TLM-H Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

LV8104V-TLM-H Features

  • Operates from 16V to 28V.
  • Surface mountable 44-SSOP package.
  • Bi-CMOS technology for motor control.
  • Suitable for BLDC motor applications.
  • RoHS3 compliant status.

LV8104V-TLM-H Applications

  • Controls speed of brushless DC motors.
  • Suitable for general purpose motor applications.
  • Ideal for industrial automation systems.
  • Used in consumer appliance motor drives.

LV8104V-TLM-H FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

16V to 28V

What is the package type?

44-SSOP or 44-LSSOP

What is the operating temperature range?

-20°C to 80°C

What type of motor does this controller drive?

Brushless DC (BLDC) motor

What interface does it use?

Parallel

What is the output configuration?

Pre-Driver Half Bridge (3)
