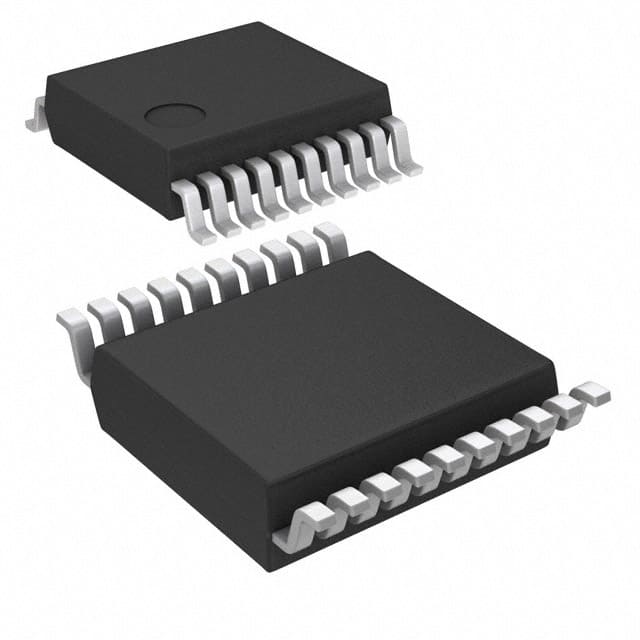

LV8011V-TLM-E The On Semiconductor LV8011V-TLM-E is a 1-channel forward/reverse motor driver IC featuring D-MOS FET output stage. It supports PWM input and offers low on-resistance and current dissipation.
Mfr Part #:

LV8011V-TLM-E

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor LV8011V-TLM-E is a 1-channel forward/reverse motor driver IC featuring D-MOS FET output stage. It supports PWM input and offers low on-resistance and current dissipation.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.75

LV8011V-TLM-E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 1321+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LV8011V-TLM-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
Storage Temperature
Supplier Device Package
Technology
Voltage
View Similar Products (0)

LV8011V-TLM-E Description

Short technical summary and product information.

The LV8011V-TLM-E from On Semiconductor is a 1-channel forward/reverse motor driver IC designed with a D-MOS FET output stage, enabling efficient PWM input support. This IC is optimized for high-current motor applications, capable of handling a maximum peak current of 5A.



Key electrical characteristics include a low typical on-resistance of 370mOhm and support for a wide operating voltage range from 2.0V to 6.5V for the load and 4.5V to 5.5V for control. It also features protection functions such as over-temperature protection and reduced voltage detection, enhancing reliability.



The device is housed in a 20-SSOP package, suitable for surface mounting. Its applications include driving DC motors and general-purpose use where high-current motor control is required. The operating temperature range is -20°C to +75°C.



This motor driver IC is designed for applications requiring robust performance and integrated protection features, making it a suitable choice for various industrial and consumer electronics projects.

LV8011V-TLM-E Quick Information

Product Type: Motor Driver IC
Canonical Name: LV8011V-TLM-E 1-Channel Forward/Reverse Motor Driver IC
Subcategory: Full Half-Bridge Drivers

LV8011V-TLM-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LV8011V-TLM-E Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

LV8011V-TLM-E Features

  • 1-channel forward/reverse motor driver IC.
  • D-MOS FET output stage for PWM input.
  • Low on-resistance of 370mOhm typical.
  • Maximum peak output current of 5A.
  • Integrated over-temperature protection.

LV8011V-TLM-E Applications

  • Ideal for DC motor control.
  • Suitable for high-current applications.
  • Used in general purpose driving.
  • Supports PWM signal input.

LV8011V-TLM-E FAQs

7 frequently asked questions generated from this part’s specifications.
What are the supply voltage requirements for the LV8011V-TLM-E?

The load supply (VM) ranges from 2.0V to 6.5V; the control supply (VCC) ranges from 4.5V to 5.5V.

What is the operating temperature range of the LV8011V-TLM-E?

-20°C to 75°C.

What package does the LV8011V-TLM-E use?

20-SSOP surface-mount package (20-LSSOP, 0.173\" width).

How much output current can the LV8011V-TLM-E handle?

DC output up to 1A, with peak currents up to 3A (≤100ms) and 5A (≤10ms).

What is the typical on-resistance of the LV8011V-TLM-E?

The typical on-resistance is 370mΩ (sum of high-side and low-side).

What is the maximum input signal frequency for the LV8011V-TLM-E?

100kHz with a maximum duty cycle of 50%.

Does the LV8011V-TLM-E include over-temperature protection?

Yes, it includes over-temperature protection.
