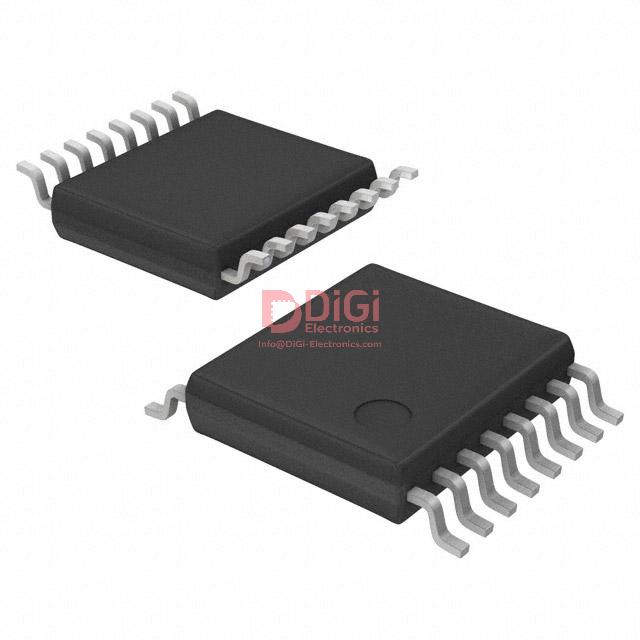

The LV5725JA-AH from On Semiconductor is a versatile DC-DC switching controller IC. It is designed for step-down (buck) conversion with a positive output configuration. This device operates within a voltage range of 4.5V to 50V and offers a flexible frequency control from 50kHz to 500kHz.
Key electrical features include a maximum duty cycle of 92% and control functions such as current limit, enable, frequency control, power good, and soft start. The IC is housed in a 16-SSOP package, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C (TA).
This controller is ideal for various power supply designs requiring efficient voltage regulation. The synchronous rectifier feature and clock sync capability enhance its performance and integration into complex systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LV5725JA-AH operates with an input voltage from 4.5V to 50V.
The LV5725JA-AH operates from -40°C to +85°C (ambient temperature).
The LV5725JA-AH is available in a 16-SSOP surface-mount package, also described as 16-LSSOP (0.173", 4.40mm width).
The switching frequency range is 50kHz to 500kHz.
Yes, the LV5725JA-AH has a synchronous rectifier.
The maximum duty cycle is 92%.
The device includes current limit, enable, frequency control, power good, and soft start.
