| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |
The ON Semiconductor LV5685PV-XH is an integrated circuit belonging to the Special Purpose Regulators category. This device is designed for applications in power supplies and automotive systems. It offers multiple outputs, specifically six, and operates within an input voltage range of 5.1V to 16V.

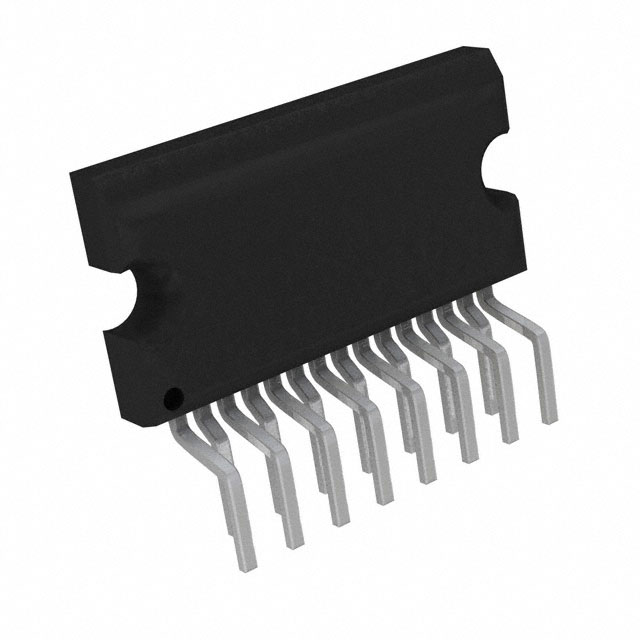

The component is housed in a 15-HZIP package with a 15-SSIP exposed pad and formed leads, designed for through-hole mounting. The operating temperature range for this IC is -40°C to 85°C. The packaging is provided in Tape & Box (TB) format.
This regulator is suitable for designs requiring a versatile power management solution with multiple output capabilities. Its through-hole mounting makes it adaptable for various PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating input voltage range for the LV5685PV-XH is 5.1V to 16V.
The LV5685PV-XH has 6 outputs.
The operating temperature range for the LV5685PV-XH is -40°C to 85°C.
The LV5685PV-XH is supplied in a 15-HZIP package, with a 15-SSIP exposed pad and formed leads.
The LV5685PV-XH is designed for Through Hole mounting.
