LV5609LP-E The On Semiconductor LV5609LP-E is an IC clock driver designed for CCD applications. It operates within a 2V to 5.5V supply range and features a surface mount package.
Mfr Part #:

LV5609LP-E

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor LV5609LP-E is an IC clock driver designed for CCD applications. It operates within a 2V to 5.5V supply range and features a surface mount package.
✓ Total Stock: 5,760 pcs
$ Price Range: $3.00

LV5609LP-E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
5,760 pcs
On Request
5760 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LV5609LP-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Input
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Operating Voltage
Output
PLL
Ratio
Supplier Device Package
Voltage
View Similar Products (0)

LV5609LP-E Description

Short technical summary and product information.

The LV5609LP-E from On Semiconductor is an application-specific clock driver integrated circuit. Designed primarily for CCD applications, this component offers a supply voltage range of 2V to 5.5V. It features CMOS input and output capabilities, with a differential input/output configuration specified as No/No.

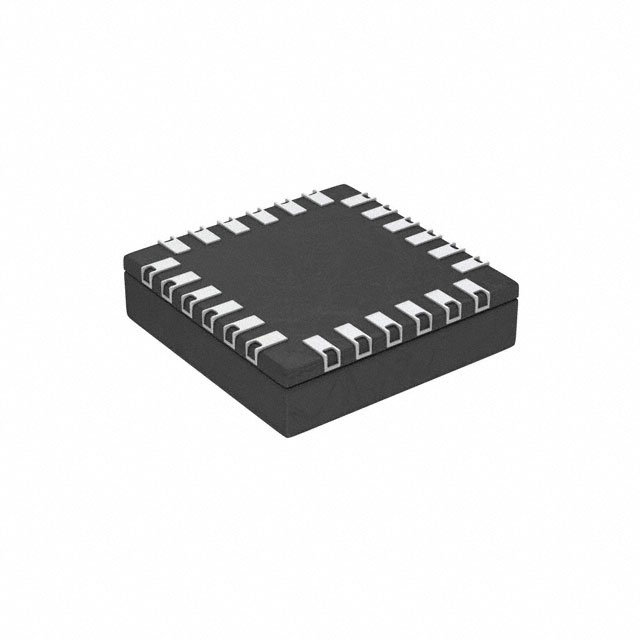

The device is housed in a 24-VFQFN Exposed Pad package and is designed for surface mounting, making it suitable for various electronic assemblies. The operating temperature range for this IC is -20°C to 80°C, ensuring reliable performance in different environmental conditions. It includes a single circuit and does not incorporate a PLL.



Key specifications include a supplier device package of 24-VCT (3.5x3.5) and a ratio of 7:5. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. This clock driver is part of the Clock/Timing category, specifically for application-specific timing needs.

LV5609LP-E Quick Information

Product Type: Clock Driver IC
Canonical Name: On Semiconductor LV5609LP-E IC Clock Driver
Subcategory: Clock/Timing

LV5609LP-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LV5609LP-E Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

LV5609LP-E Features

  • IC clock driver for CCD applications.
  • Operates from 2V to 5.5V supply.
  • Surface mountable 24-VFQFN package.
  • Wide -20°C to 80°C operating temperature.
  • RoHS3 Compliant status.

LV5609LP-E Applications

  • Suitable for CCD camera timing applications.
  • Used in industrial automation clock systems.
  • Ideal for precise timing in imaging equipment.
  • Applicable in high-voltage clock driver circuits.

LV5609LP-E FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the LV5609LP-E?

The operating voltage supply range is 2V to 5.5V.

What type of package is the LV5609LP-E in?

The LV5609LP-E is available in a 24-VFQFN Exposed Pad package.

What is the operating temperature range for this clock driver?

The operating temperature range is -20°C to 80°C.

Is the LV5609LP-E RoHS compliant?

Yes, the RoHS status is RoHS3 Compliant.
