| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Isolation Test Voltage (@ 5 min) | |
| Isolation Test Voltage (@ 50 Hz/1 min) | |
| Measurement Current | |
| Measuring Range | |
| Mounting Type | |
| Nominal Voltage | |
| Operating Temperature | |
| Output Type | |
| Primary Signal | |
| Second. Nominal Signal Value | |
| Sensor Type | |
| Supply Voltage | |
| Supply Voltage Range | |
| Technology |

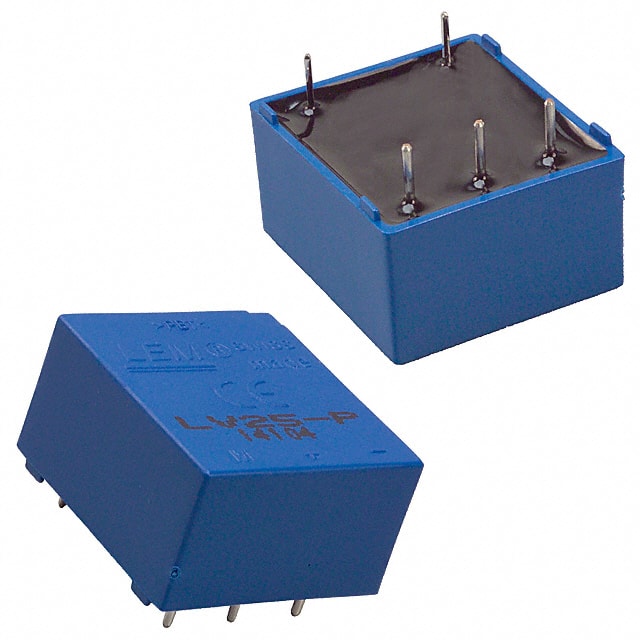

The LEM LV 25-P is a specialized voltage transducer utilizing closed-loop Hall effect technology. Designed for direct PCB mounting, this component is suitable for applications requiring precise voltage measurements.
Key electrical specifications include a nominal measurement current of 0.01A and a measuring range of 0.014A. It operates with an external DC bipolar supply voltage ranging from 12V to 15V, providing a nominal secondary signal current of 25mA. The accuracy is rated at 0.9%.
This transducer is well-suited for integration into systems such as drives, power supplies, renewable energy equipment, and welding automation. The closed-loop Hall effect technology ensures high accuracy and stability in measurement.
Further details indicate an isolation test voltage of 4.2 kVRMS at 50 Hz for 1 minute, and 4 kVDC for 5 minutes. The LV 25-P/SP5 variant is specified for nominal voltages up to 500V and an operating temperature range of -40°C to +85°C, while the base LV 25-P is listed with an operating temperature of 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal measurement current for the LEM LV 25-P is 0.01 A.
The accuracy of the LV 25-P voltage transducer is 0.9%.
The LEM LV 25-P uses closed loop Hall effect technology.
The LEM LV 25-P is designed for PCB mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
