| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| DC Forward Current | |
| Emitted Color | |
| Forward Voltage | |
| Height (Max) | |
| Lead Soldering Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Luminous Intensity (Minimum/Typical/Maximum @ IF =20 mA) | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature Range | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage |

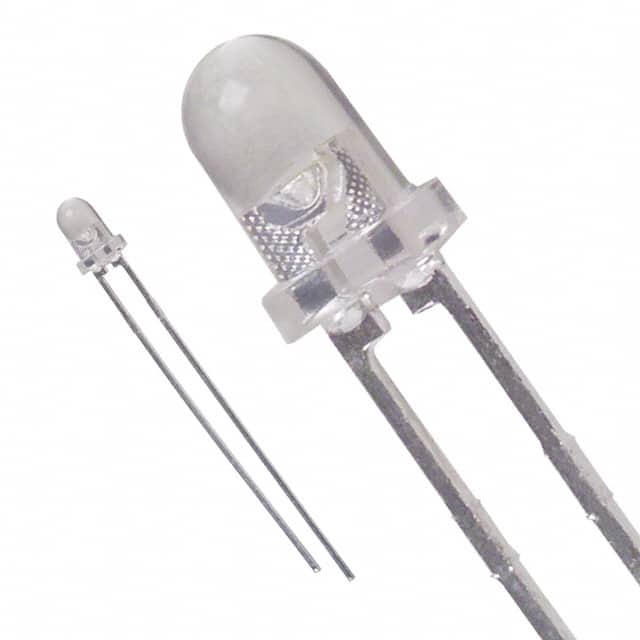

This Lite-On Inc. LTW-420C5 LED is designed for indication purposes, featuring a white emitted color and a clear, round lens with a domed top. It is housed in a T-1 diameter package suitable for through-hole mounting.
Key electrical characteristics include a typical forward voltage of 3.6V and a maximum forward current of 20mA, delivering a luminous intensity ranging from 1500 to 2600mcd. The viewing angle is specified at 25 degrees. Absolute maximum ratings include a power dissipation of 120mW and a peak forward current of 100mA.
The operating temperature range for this component is -25°C to +80°C, with a storage temperature range of -30°C to +100°C. It is compatible with I.C.s and requires low current. The LED has a height of 5.25mm and a lens size of 3mm.
This component is suitable for various electronic board applications where discrete white LED indication is required. Its versatile mounting and clear lens make it a practical choice for panel or PCB integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical luminous intensity is 2600mcd when the forward current is 20mA.
The forward voltage is between 3.6V and 4.1V at a forward current of 20mA.
The operating temperature range is -25°C to +80°C.
The package type is T-1, suitable for through-hole mounting.
