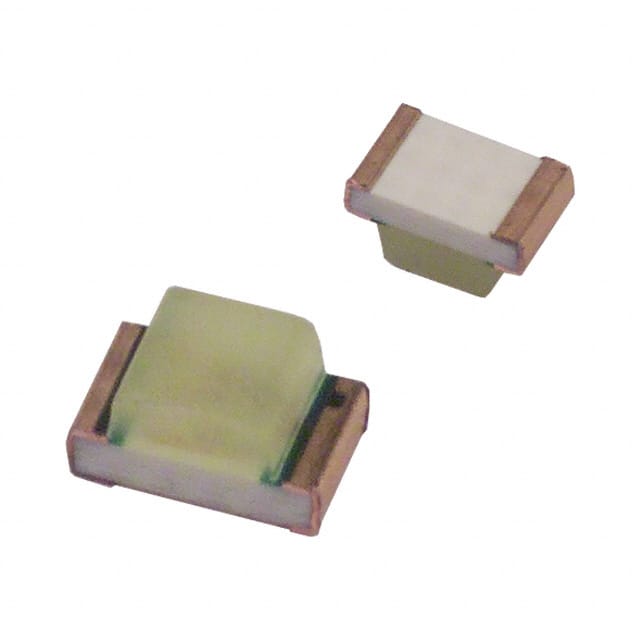

LTW-170TK The Lite-On Inc. LTW-170TK is a white SMD LED with a 0805 package. It operates at 20mA DC forward current and has a 130° viewing angle.
Mfr Part #:

LTW-170TK

Available from 5 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTW-170TK is a white SMD LED with a 0805 package. It operates at 20mA DC forward current and has a 130° viewing angle.
✓ Total Stock: 7,038 pcs
$ Price Range: $0.08

LTW-170TK Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTW-170TK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Supplier Device Package
Viewing Angle
Voltage
View Similar Products (0)

LTW-170TK Description

Short technical summary and product information.

This Lite-On Inc. LTW-170TK is a white surface-mount LED designed for discrete indication applications. It features an 0805 (2012 Metric) package with dimensions of 2.00mm L x 1.25mm W and a maximum height of 1.10mm.



The LED emits white light with a typical luminous intensity of 112 mcd at 20mA forward current. It has a wide viewing angle of 130° and a yellow lens. The forward voltage is typically between 2.8V and 3.8V at 20mA.



Operating temperature ranges from -20°C to +80°C, with a storage temperature range of -55°C to +105°C. The component is compatible with automatic placement equipment and infrared reflow soldering processes, with a suggested condition of 260°C for 10 seconds.



This LED meets RoHS3 compliance and has an MSL rating of 1.

LTW-170TK Quick Information

Product Type: LED
Canonical Name: Lite-On Inc. LTW-170TK White SMD LED
Subcategory: SMD LED

LTW-170TK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTW-170TK Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTW-170TK Features

  • Ultra bright InGaN White Chip LED.
  • Package in 8mm tape on 7" diameter reels.
  • Compatible with automatic placement equipment.
  • Compatible with infrared reflow solder process.
  • EIA STD package.

LTW-170TK Applications

  • Surface mount LED indication.
  • Discrete lighting applications.
  • Automated assembly processes.
  • Infrared reflow soldering.

LTW-170TK FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the LTW-170TK LED?

The forward voltage of the LTW-170TK LED ranges from 2.8V to 3.8V at 20mA.

What is the viewing angle of the LTW-170TK LED?

The viewing angle of the LTW-170TK LED is 130 degrees.

What is the luminous intensity of the LTW-170TK LED?

The luminous intensity ranges from 112 to 450 millicandelas at 20mA.

What package type is used for the LTW-170TK LED?

The LTW-170TK LED uses an 0805 (2012 metric) surface-mount package.

What is the maximum operating temperature for the LTW-170TK?

The maximum operating temperature is +80°C.

Is the LTW-170TK LED RoHS compliant?

Yes, the LTW-170TK is RoHS3 compliant.
