| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,990 pcs
|
2990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
718 pcs
|
718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Millicandela Rating | |
| Mounting Type | |
| Peak Forward Current | |
| Power Dissipation | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage |

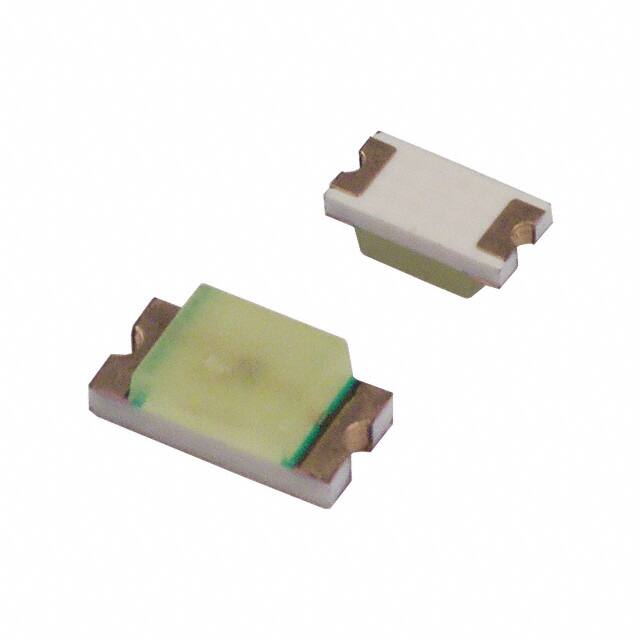

The Lite-On LTW-150TK is a surface-mount device (SMD) LED designed for automated PC board assembly and space-sensitive applications. This white chip LED features a 1206 package size (3216 Metric) with dimensions of 3.2mm x 1.6mm.
Key electrical characteristics include a typical forward voltage of 3.2V and a maximum forward current of 20mA. The LED provides a typical luminous intensity of 260mcd with a wide viewing angle of 130°. Its typical power dissipation is rated at 70mW.
This component is suitable for various applications such as keypad backlighting, status indication, and signal luminary. It is compatible with infrared reflow soldering processes and operates within a temperature range of -20°C to +80°C. The LED is packaged in an 8mm tape on 7" diameter reels.
The LTW-150TK meets RoHS3 compliance standards and has a moisture sensitivity level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Lite-On LTW-150TK LED is 3.2V.
The LTW-150TK LED is supplied in a 1206 (3216 Metric) SMD package.
The operating temperature range for the LTW-150TK LED is -20°C to +80°C.
The LTW-150TK LED is RoHS3 compliant.
