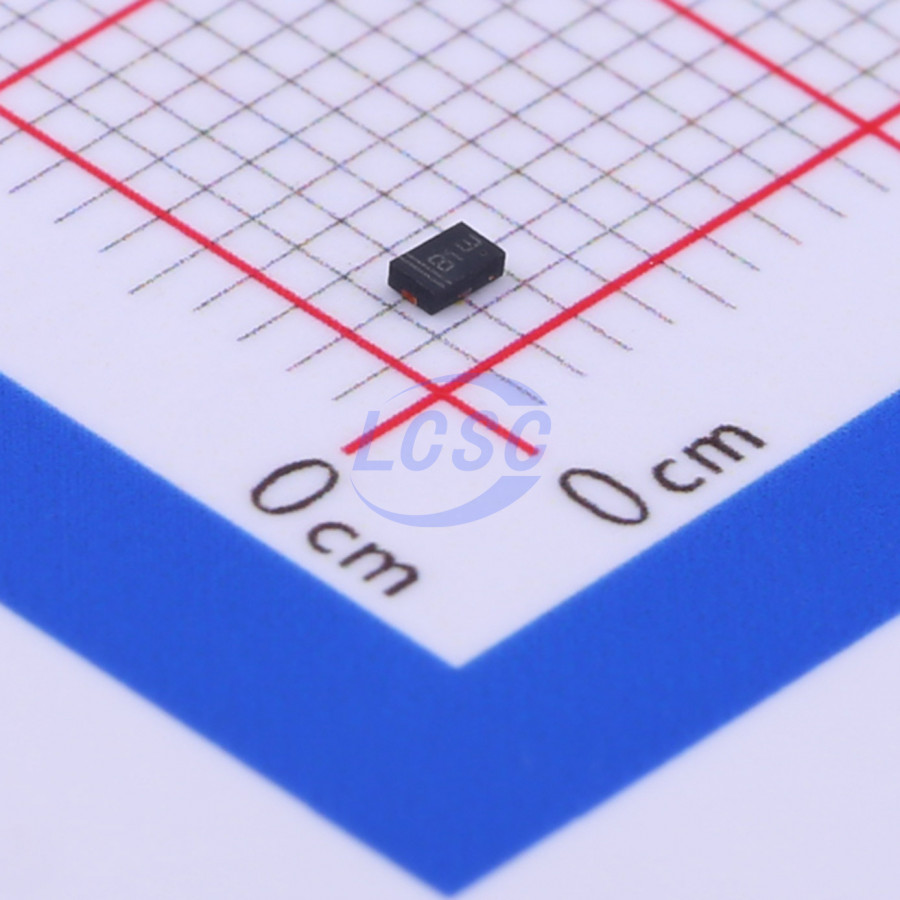

LTVS16H5.0ET5G The LRC LTVS16H5.0ET5G is a unidirectional TVS diode designed for ESD and surge protection. It features a peak pulse power dissipation of 1.8kW and a peak pulse current of 150A.
Mfr Part #:

LTVS16H5.0ET5G

Available from 1 distributors
Mfr Name: LRC Leshan Radio Co Ltd
LRC Leshan Radio Co Ltd
The LRC LTVS16H5.0ET5G is a unidirectional TVS diode designed for ESD and surge protection. It features a peak pulse power dissipation of 1.8kW and a peak pulse current of 150A.
✓ Total Stock: 24,343 pcs
$ Price Range: $0.03

LTVS16H5.0ET5G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
24,343 pcs
On Request
24343 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTVS16H5.0ET5G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Junction Capacitance
Mounting Type
View Similar Products (0)

LTVS16H5.0ET5G Description

Short technical summary and product information.

The LRC LTVS16H5.0ET5G is a unidirectional Transient Voltage Suppressor (TVS) diode designed for robust ESD and surge protection. It offers a peak pulse power dissipation of 1.8kW at an 8/20us waveform and can handle a peak pulse current of 150A under the same conditions.



This TVS diode has a reverse stand-off voltage of 5V and a breakdown voltage of 7.1V. Its clamping voltage is 10.8V, and it exhibits a low reverse leakage current of 600nA. The junction capacitance is rated at 800pF, making it suitable for various signal line protection applications.



Packaged in a compact DFN1610-2 surface-mount (SMT) form factor, the LTVS16H5.0ET5G is designed for efficient integration into printed circuit boards. Its protection level meets IEC 61000-4-2 standards, ensuring reliable defense against transient voltage events.

LTVS16H5.0ET5G Quick Information

Product Type: TVS Diode
Canonical Name: LRC LTVS16H5.0ET5G Unidirectional TVS Diode
Subcategory: ESD and Surge Protection

LTVS16H5.0ET5G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTVS16H5.0ET5G Estimated Pricing

Qty Low High
1+ $0.03 $0.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTVS16H5.0ET5G Features

  • Unidirectional TVS diode for surge protection.
  • 1.8kW peak pulse power capability.
  • 150A peak pulse current handling.
  • 5V reverse stand-off voltage.
  • DFN1610-2 SMT package.

LTVS16H5.0ET5G Applications

  • Protects sensitive electronic circuits.
  • Ideal for ESD event mitigation.
  • Suitable for signal line protection.
  • Used in compact electronic devices.

LTVS16H5.0ET5G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak pulse power dissipation of the LTVS16H5.0ET5G?

The LTVS16H5.0ET5G has a peak pulse power dissipation of 1.8kW at an 8/20us waveform.

What is the peak pulse current for the LTVS16H5.0ET5G?

The peak pulse current for the LTVS16H5.0ET5G is 150A at an 8/20us waveform.

What is the reverse stand-off voltage of this TVS diode?

The reverse stand-off voltage (Vrwm) for the LTVS16H5.0ET5G is 5V.

What is the breakdown voltage of the LTVS16H5.0ET5G?

The breakdown voltage of the LTVS16H5.0ET5G is 7.1V.

What is the junction capacitance of the LTVS16H5.0ET5G?

The junction capacitance of the LTVS16H5.0ET5G is 800pF.

What standard does the LTVS16H5.0ET5G meet for protection level?

The LTVS16H5.0ET5G meets the IEC 61000-4-2 standard for its level of protection.

What type of polarity does the LTVS16H5.0ET5G support?

The LTVS16H5.0ET5G is a unidirectional polarity TVS diode.
