| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Rise | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Vce Saturation (Max) | |
| Voltage |

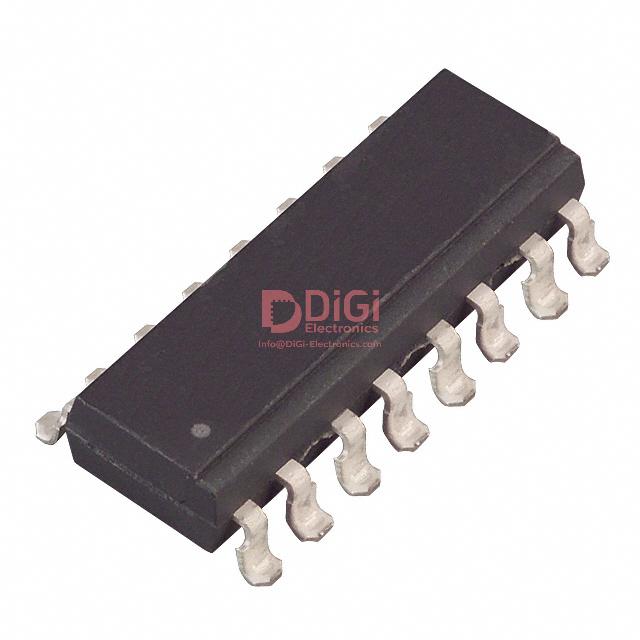

The Lite-On Inc. LTV-824S is a 2-channel optocoupler designed for signal isolation applications. It offers a high input-output isolation voltage of 5000Vrms, making it suitable for environments requiring robust electrical separation.
This optocoupler supports both AC and DC input signals and provides a transistor output. It has a maximum DC forward current rating of 50 mA and a Vce saturation of 200mV maximum. The current transfer ratio (CTR) ranges from a minimum of 20% at 1mA to a maximum of 300% at 1mA. Response times for rise and fall are typically 4µs and 3µs, respectively.
The LTV-824S is housed in an 8-SMD, Gull Wing package, designed for surface mounting. It operates within a temperature range of -30°C to 100°C. The device is RoHS3 Compliant, with an MSL rating of 1 Unlimited and REACH Unaffected status.
This component is suitable for applications requiring high-density mounting and reliable signal isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 5000Vrms.
The LTV-824S has 2 channels.
The operating temperature range is -30°C to 100°C.
The minimum CTR is 20% at 1mA.
The maximum CTR is 300% at 1mA.
The LTV-824S is supplied in an 8-SMD, Gull Wing package.
