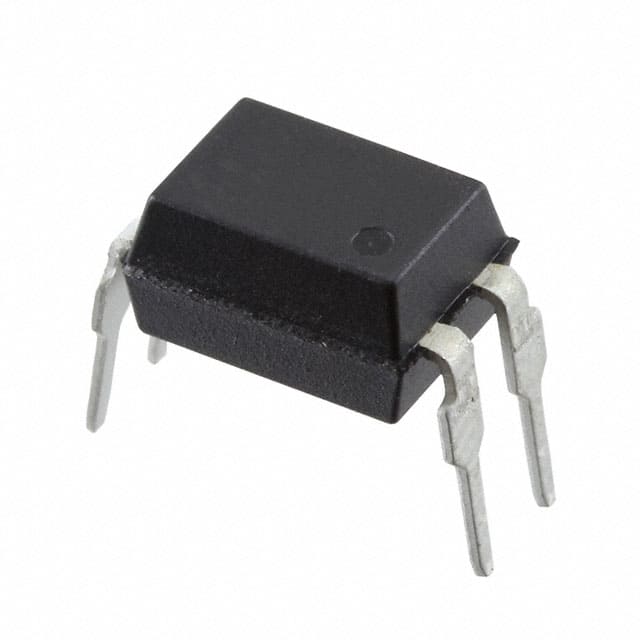

LTV-817 The Lite-On Inc. LTV-817 is a transistor output optocoupler with 5000Vrms isolation voltage. It is designed for through-hole mounting in a 4-DIP package.
Mfr Part #:

LTV-817

Available from 4 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTV-817 is a transistor output optocoupler with 5000Vrms isolation voltage. It is designed for through-hole mounting in a 4-DIP package.
✓ Total Stock: 10,878 pcs
$ Price Range: $1.24

LTV-817 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10,200 pcs
On Request
10200 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
487 pcs
On Request
487 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request 2026-04-21 07:15:11
Hybrid Electronics ✓
Non-Authorised Inventory information
115 pcs
On Request
115 pcs On Request 1 On Request On Request 0424/0441 On Request On Request
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
76 pcs
On Request
76 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTV-817 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output Type
Response Time
Rise
Supplier Device Package
Vce Saturation (Max)
Voltage
View Similar Products (0)

LTV-817 Description

Short technical summary and product information.

The Lite-On Inc. LTV-817 is a single-channel optocoupler featuring transistor output. It provides a high isolation voltage of 5000Vrms, making it suitable for applications requiring electrical isolation.



This component has a DC input type and can handle a current of up to 50 mA. The current transfer ratio (CTR) ranges from a minimum of 50% at 5mA to a maximum of 600% at 5mA. The Vce saturation voltage is a maximum of 200mV. Its response time is typically 4µs.



The LTV-817 is designed for through-hole mounting and comes in a 4-DIP package, specifically 4-DIP (0.300", 7.62mm). It operates within a temperature range of -55°C to 110°C.



This optocoupler is compliant with RoHS3 standards and has an MSL rating of 1.

LTV-817 Quick Information

Product Type: Optocoupler
Series: LTV-8X7
Canonical Name: LTV-817 Transistor Output Optocoupler
Subcategory: Transistor Output

LTV-817 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTV-817 Estimated Pricing

Qty Low High
1+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTV-817 Features

  • 5000Vrms high input-output isolation voltage.
  • Single channel transistor output optocoupler.
  • Wide current transfer ratio from 50% to 600%.
  • Fast response time of typically 4µs.
  • Through-hole mounting in a 4-DIP package.

LTV-817 Applications

  • Used for electrical isolation in power supplies
  • Suitable for motor control circuits
  • Ideal for data communication interfaces
  • Supports industrial automation systems

LTV-817 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the LTV-817 optocoupler?

The LTV-817 optocoupler has an isolation voltage of 5000Vrms.

How many channels does the LTV-817 have?

The LTV-817 has 1 channel.

What is the output type of the LTV-817?

The LTV-817 features a transistor output type.

What is the operating temperature range for the LTV-817?

The LTV-817 operates between -55°C and 110°C.

What is the minimum and maximum Current Transfer Ratio (CTR) for the LTV-817?

The LTV-817 has a minimum CTR of 50% and a maximum CTR of 600% at 5mA.

What is the package type for the LTV-817?

The LTV-817 is supplied in a 4-DIP package.
