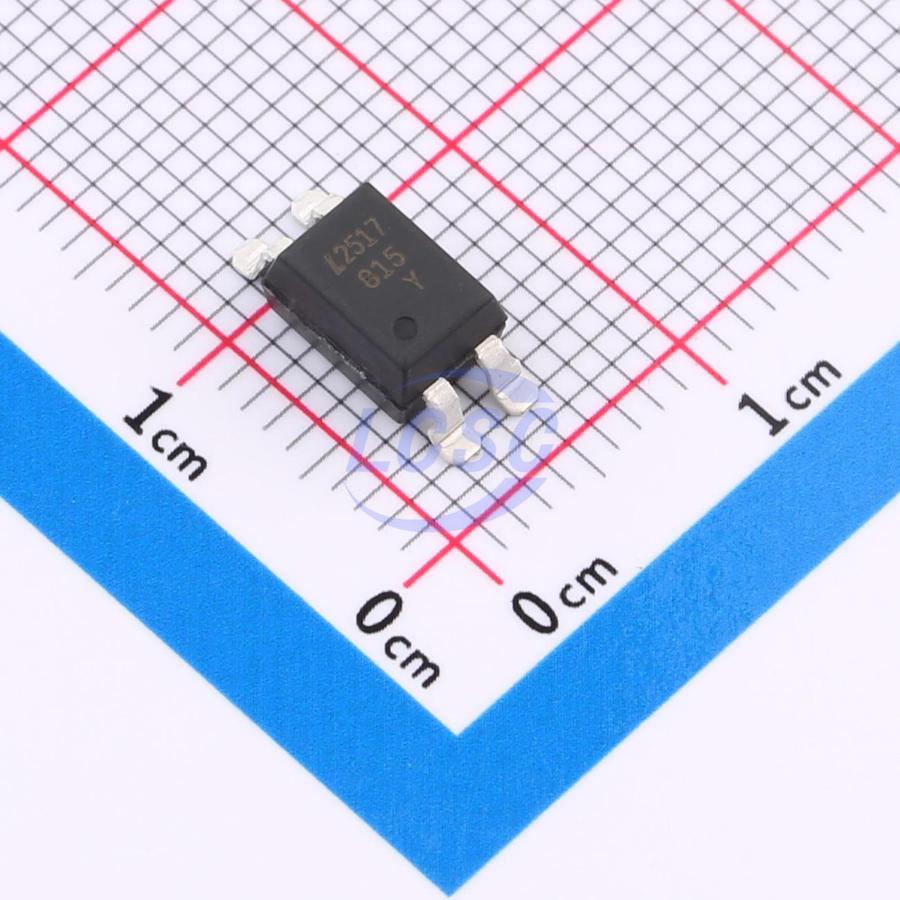

LTV-815S-TA1 The Lite-On LTV-815S-TA1 is an optoisolator featuring a 35V voltage rating and a PDIP-4 Gull Wing package. It is RoHS3 compliant.
Mfr Part #:

LTV-815S-TA1

Available from 2 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On LTV-815S-TA1 is an optoisolator featuring a 35V voltage rating and a PDIP-4 Gull Wing package. It is RoHS3 compliant.
✓ Total Stock: 20,000 pcs
$ Price Range: $0.15

LTV-815S-TA1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTV-815S-TA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Style
Temperature
Voltage
View Similar Products (0)

LTV-815S-TA1 Description

Short technical summary and product information.

The Lite-On LTV-815S-TA1 is an optoisolator designed for electronic applications requiring signal isolation. This component operates with a voltage rating of 35V and is housed in a PDIP-4 Gull Wing package, suitable for SMD/SMT mounting.



Key specifications include an operating temperature range of -30 C to +100 C. The device is classified as RoHS3 Compliant, indicating adherence to environmental standards. The standard packaging quantity is 1000 units.



This optoisolator is manufactured by Lite-On Inc. and falls under the product series LTV-815. Its classification as an optoisolator with transistor, photovoltaic output makes it suitable for various signal isolation tasks in electronic designs.

LTV-815S-TA1 Quick Information

Product Type: Optoisolator
Series: LTV-815S
Canonical Name: LTV-815S-TA1 Optoisolator
Subcategory: Optoisolators - Transistor, Photovoltaic Output

LTV-815S-TA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTV-815S-TA1 Estimated Pricing

Qty Low High
1+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTV-815S-TA1 Features

  • Rated for 35 V operation.
  • Operates from -30 C to +100 C.
  • PDIP-4 Gull Wing package.
  • Surface mount SMD/SMT mounting.
  • Transistor photovoltaic output type.

LTV-815S-TA1 Applications

  • Used for signal isolation circuits.
  • Ideal for voltage level shifting.
  • Suitable for industrial temperature environments.
  • Used in noise suppression applications.

LTV-815S-TA1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the LTV-815S-TA1?

The operating voltage for the LTV-815S-TA1 is 35 V.

What is the operating temperature range of the LTV-815S-TA1?

The LTV-815S-TA1 operates within a temperature range of -30 C to +100 C.

What package type does the LTV-815S-TA1 come in?

The LTV-815S-TA1 comes in a PDIP-4 Gull Wing package.

What is the standard packaging quantity for the LTV-815S-TA1?

The standard packaging quantity for the LTV-815S-TA1 is 1000 units.

Is the LTV-815S-TA1 RoHS compliant?

The LTV-815S-TA1 is RoHS3 Compliant.
