| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,400 pcs
|
15400 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Forward Voltage | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |

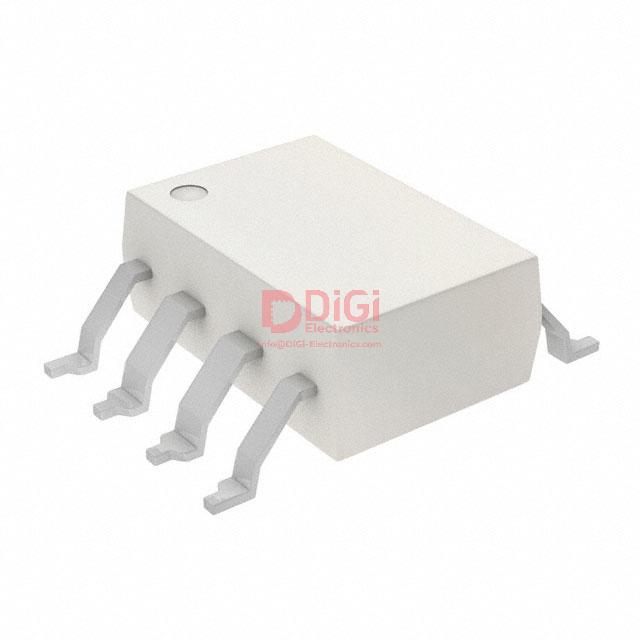

The Lite-On Inc. LTV-3120S-TA1 is a gate drive optocoupler designed for driving power IGBTs and MOSFETs. It provides 5000Vrms of isolation and can deliver a peak output current of 2.5A, making it suitable for applications like motor control inverters and uninterruptible power supplies.
Key electrical specifications include a wide operating voltage range of 15V to 30V and a maximum supply current of 3.8mA. The optocoupler offers fast switching speeds with a maximum propagation delay of 500ns. It is designed to operate reliably over an extended temperature range from -40°C to 105°C.
This component is available in an 8-SMD, Gull Wing package, suitable for surface mount applications. The LTV-3120S-TA1 is RoHS3 compliant and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 5000Vrms.
The peak output current is 2.5A.
The operating temperature range is -40°C to 105°C.
It is supplied in an 8-SMD, Gull Wing package.
Yes, it is RoHS3 Compliant.
