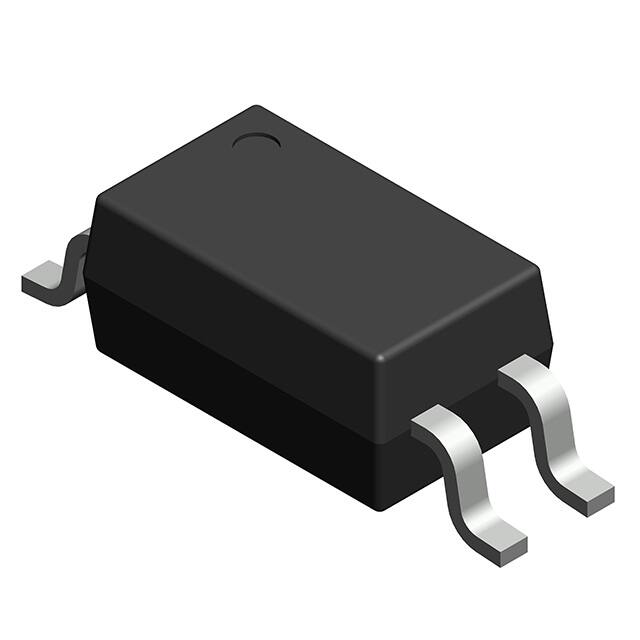

LTV-217-C-G The Lite-On Inc. LTV-217-C-G is a transistor output optocoupler with a high isolation voltage of 3750Vrms. It is designed for surface mount applications in a 4-SSOP package.
Mfr Part #:

LTV-217-C-G

Available from 3 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTV-217-C-G is a transistor output optocoupler with a high isolation voltage of 3750Vrms. It is designed for surface mount applications in a 4-SSOP package.
✓ Total Stock: 4,247 pcs
$ Price Range: $1.24

LTV-217-C-G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,539 pcs
On Request
3539 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
354 pcs
On Request
354 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
354 pcs
On Request
354 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTV-217-C-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Forward Current
Forward Voltage
Halogen Free
Industrial Grade
Input Type
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature
Output Type
Power Dissipation
Reverse Voltage
Rise
Supplier Device Package
Tape & Reel
Turn On
Vce Saturation (Max)
Voltage
View Similar Products (0)

LTV-217-C-G Description

Short technical summary and product information.

The Lite-On Inc. LTV-217-C-G is a single-channel optocoupler featuring transistor output. It provides a high input-output isolation voltage of 3750Vrms, making it suitable for applications requiring electrical isolation.



Key electrical specifications include a forward current of 20 mA, a maximum collector current of 50 mA, and a maximum collector emitter voltage of 70 V. The device operates within a temperature range of -55°C to 110°C. It offers a minimum current transfer ratio of 50% at 5mA and a maximum of 400% at 5mA, with a Vce saturation of 400mV.



This optocoupler is housed in a 4-SSOP package, designed for surface mounting. The compact size and surface-mount capability make it ideal for high-density hybrid substrates, programmable controllers, and system appliances where space is a constraint.



Environmental compliance includes RoHS3 compliance and Halogen Free materials. The Moisture Sensitivity Level (MSL) is rated as 1.

LTV-217-C-G Quick Information

Product Type: Optocoupler
Canonical Name: Lite-On Inc. LTV-217-C-G Transistor Output Optocoupler
Subcategory: Transistor Output Optocouplers

LTV-217-C-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTV-217-C-G Estimated Pricing

Qty Low High
1+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTV-217-C-G Features

  • High input-output isolation voltage.
  • Transistor output type.
  • Surface mount 4-SSOP package.
  • Wide operating temperature range.
  • RoHS3 compliant and Halogen Free.

LTV-217-C-G Applications

  • Hybrid substrates requiring high density.
  • Programmable controllers.
  • System appliances.
  • Measuring instruments.

LTV-217-C-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the LTV-217-C-G optocoupler?

The isolation voltage is 3750Vrms.

What is the minimum current transfer ratio (CTR) for the LTV-217-C-G?

The minimum CTR is 200% at 5mA.

What is the maximum collector current of the LTV-217-C-G?

The maximum collector current is 50 mA.

What is the operating temperature range for this optocoupler?

The operating temperature range is -55°C to 110°C.

What package type is the LTV-217-C-G supplied in?

It is supplied in a 4-SSOP package for surface mounting.

Is the LTV-217-C-G RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the LTV-217-C-G?

The MSL is 1 Unlimited.
