Mfr Part #:

LTV-217-B-G

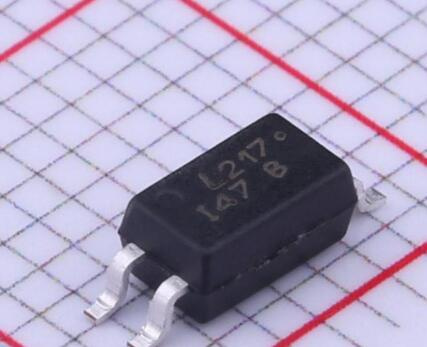

The LTV-217-B-G is an optocoupler from Lite-On Inc. featuring high input-output isolation voltage and a wide current transfer ratio range.

✓ Total Stock: 10,005 pcs

$ Price Range: $0.35

LTV-217-B-G Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	5,824 pcs On Request	5824 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	2,650 pcs On Request	2650 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,531 pcs On Request	1531 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LTV-217-B-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Lite-On Inc.
Halogen Free	Available
Mounting Type	Surface Mount
Number of Channels	1

View Similar Products (0)

LTV-217-B-G Description

Short technical summary and product information.

The Lite-On Inc. LTV-217-B-G is a transistor output optocoupler designed for high isolation applications. It provides a robust 3750Vrms input-output isolation voltage, ensuring safety in various electronic circuits.

This optocoupler offers a wide current transfer ratio (CTR) ranging from 50% to 600% at a forward current of 5mA, providing flexibility for different design requirements. It also features high ESD protection, passing HBM 8000V, MM 2000V, and CDM 2000V tests.

The LTV-217-B-G comes in a compact SOP4 package suitable for surface mount applications. It is RoHS compliant and offers a halogen-free option, catering to environmental regulations and design preferences. Global safety approvals such as UL, VDE, CSA, CQC, FIMKO, and DEMKO are certified for this component.

With its combination of high isolation, flexible CTR, and safety certifications, the LTV-217-B-G is a reliable choice for signal isolation in a wide array of electronic systems.

LTV-217-B-G Quick Information

Product Type: Optocoupler

Series: LTV-217

Canonical Name: LTV-217-B-G Optoisolator

Subcategory: Optoisolators - Transistor, Photovoltaic Output

LTV-217-B-G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LTV-217-B-G Estimated Pricing

Qty	Low	High
1+	$0.35	$0.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTV-217-B-G Features

High 3750Vrms input-output isolation.
Wide CTR from 50% to 600%.
High ESD protection up to 8000V.
SOP4 surface mount package.
Global safety approvals certified.

LTV-217-B-G Applications

Ideal for industrial control system isolation.
Used in power supply feedback loop circuits.
Suitable for microcontroller interface protection.
Applied in communication port signal isolation.
Designed for motor drive gate driver circuits.

LTV-217-B-G FAQs

4 frequently asked questions generated from this part’s specifications.

What is the isolation voltage of the LTV-217-B-G optocoupler?

The LTV-217-B-G optocoupler has an isolation voltage of 3750Vrms.

What is the current transfer ratio (CTR) range for the LTV-217-B-G?

The current transfer ratio (CTR) for the LTV-217-B-G is between 50% and 600% at an IF of 5mA.

What type of package is the LTV-217-B-G available in?

The LTV-217-B-G is available in a SOP4 package.

Does the LTV-217-B-G offer halogen-free material composition?

Yes, a halogen-free option is available for the LTV-217-B-G.
