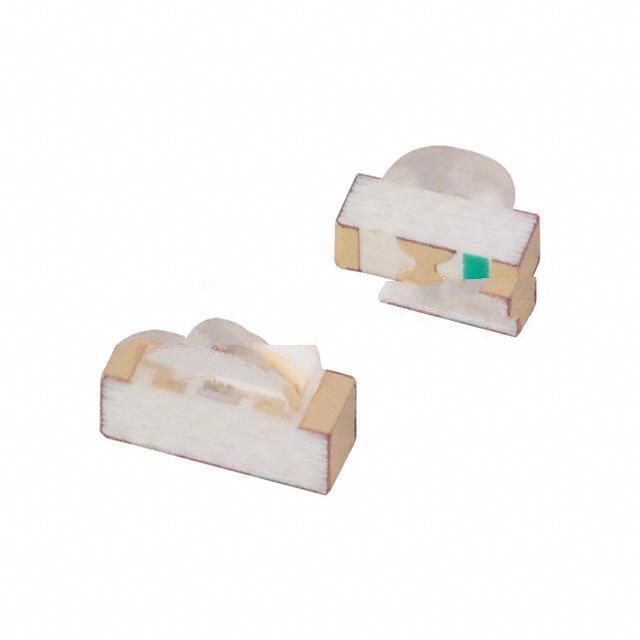

LTST-S320KRKT The Lite-On Inc. LTST-S320KRKT is a red, clear SMD LED designed for surface mount applications. It offers a typical luminous intensity of 54 mcd.
Mfr Part #:

LTST-S320KRKT

Available from 1 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTST-S320KRKT is a red, clear SMD LED designed for surface mount applications. It offers a typical luminous intensity of 54 mcd.
✓ Total Stock: 1,108 pcs
$ Price Range: $0.08

LTST-S320KRKT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1,108 pcs
On Request
1108 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTST-S320KRKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Storage Temperature
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTST-S320KRKT Description

Short technical summary and product information.

This Lite-On Inc. LTST-S320KRKT is a red, clear surface mount (SMD) LED with a right-angle mounting type. It features an AlInGaP chip and tin plating, suitable for automatic placement equipment and infrared reflow soldering processes.



The LED operates with a typical forward voltage of 2V and a DC forward current of 20mA, providing a luminous intensity of 54 mcd. Its peak emission wavelength is 639nm, with a dominant wavelength of 631nm and a spectral line half-width of 20nm. The viewing angle is a wide 130 degrees.



Absolute maximum ratings include a power dissipation of 75 mW and a peak forward current of 80 mA. The operating temperature range is -30°C to +85°C, and the storage temperature range is -40°C to +85°C. The package is a 2-SMD, No Lead type, specifically the 1208 size, and it comes in 8mm tape on 7" diameter reels.



This component meets RoHS and Green Product standards. It is compatible with I.C. and automatic placement equipment, making it suitable for various electronic indication applications.

LTST-S320KRKT Quick Information

Product Type: SMD LED
Canonical Name: Lite-On Inc. LTST-S320KRKT Red SMD LED
Subcategory: SMD LED

LTST-S320KRKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb Free

LTST-S320KRKT Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTST-S320KRKT Features

  • Red clear SMD LED for surface mounting.
  • Typical luminous intensity of 54 mcd.
  • Wide 130-degree viewing angle.
  • 639nm peak emission wavelength.
  • 1208 package size for automated assembly.

LTST-S320KRKT Applications

  • Ideal for status indication.
  • Suitable for automated assembly.
  • Used in electronic devices.
  • Compact 1208 package.

LTST-S320KRKT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the LTST-S320KRKT LED?

The typical forward voltage for the LTST-S320KRKT LED is 2.0 V at 20mA.

What is the luminous intensity of the LTST-S320KRKT LED?

The typical luminous intensity of the LTST-S320KRKT LED is 54.0 mcd when tested at 20mA.

What is the viewing angle of the LTST-S320KRKT LED?

The viewing angle of the LTST-S320KRKT LED is 130 degrees.

What is the operating temperature range for this LED?

The operating temperature range for the LTST-S320KRKT LED is -30°C to +85°C.

What package type is the LTST-S320KRKT LED supplied in?

The LTST-S320KRKT LED is supplied in an 8mm tape on 7" diameter reels, in a 2-SMD, No Lead (1208) package.
