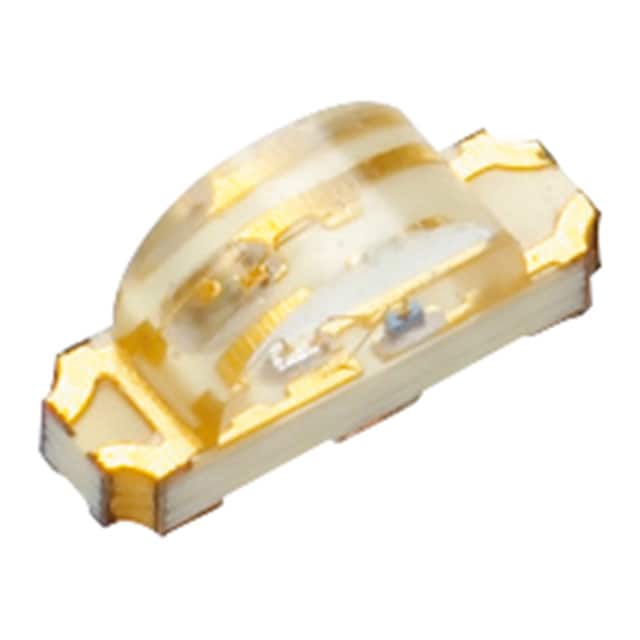

LTST-S115KRKGKT The Lite-On Inc. LTST-S115KRKGKT is a dual-color SMD LED offering both Green and Red light. It features a 1206 package and a 130° viewing angle.
Mfr Part #:

LTST-S115KRKGKT

Available from 1 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTST-S115KRKGKT is a dual-color SMD LED offering both Green and Red light. It features a 1206 package and a 130° viewing angle.
✓ Total Stock: 110 pcs
$ Price Range: $0.08

LTST-S115KRKGKT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTST-S115KRKGKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Halogen Free
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTST-S115KRKGKT Description

Short technical summary and product information.

The Lite-On Inc. LTST-S115KRKGKT is a dual-color chip LED designed for applications requiring both green and red illumination from a single component. This SMD LED is housed in a 1206 (3216 Metric) package, measuring 3.20mm L x 1.50mm W with a maximum height of 1.10mm. It is compatible with automatic placement equipment and infrared reflow soldering processes.



This device emits both green and red light, with typical dominant wavelengths of 574nm for green and 632nm for red. The typical forward voltage for both colors is 2V, with a maximum of 2.4V at a 20mA current. Luminous intensity is rated at a minimum of 28mcd (green) and 45mcd (red), with maximums of 112mcd (green) and 180mcd (red) at 20mA. The viewing angle is a wide 130°.



Absolute maximum ratings include a power dissipation of 75mW for each color, a peak forward current of 80mA, and a DC forward current of 30mA. The operating temperature range is -30°C to +85°C, and storage temperature is -40°C to +85°C. The LED meets ROHS, HF, and Green Product standards.

LTST-S115KRKGKT Quick Information

Product Type: LED Indication - Discrete
Canonical Name: Dual Color SMD LED
Subcategory: Discrete

LTST-S115KRKGKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTST-S115KRKGKT Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTST-S115KRKGKT Features

  • Dual color chip LED.
  • Side looking for LCD backlight.
  • Ultra bright AlInGaP / AlInGaP chip.
  • Package in 8mm tape on 7" reels.
  • Compatible with automatic placement equipment.

LTST-S115KRKGKT Applications

  • Ideal for status indication.
  • Suitable for backlighting applications.
  • Used in compact electronic devices.
  • Provides visual feedback.
  • Dual color output simplifies design.

LTST-S115KRKGKT FAQs

5 frequently asked questions generated from this part’s specifications.
What colors does the LTST-S115KRKGKT LED emit?

The LTST-S115KRKGKT LED emits both Green and Red light.

What is the typical forward voltage for the LTST-S115KRKGKT LED?

The typical forward voltage for both Green and Red colors is 2V.

What is the viewing angle of the LTST-S115KRKGKT LED?

The viewing angle of the LTST-S115KRKGKT LED is 130°.

What package type is the LTST-S115KRKGKT LED?

The LTST-S115KRKGKT LED is in a 1206 (3216 Metric) SMD package.

What is the operating temperature range for this LED?

The operating temperature range for the LTST-S115KRKGKT LED is -30°C to +85°C.
