| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
918 pcs
|
918 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

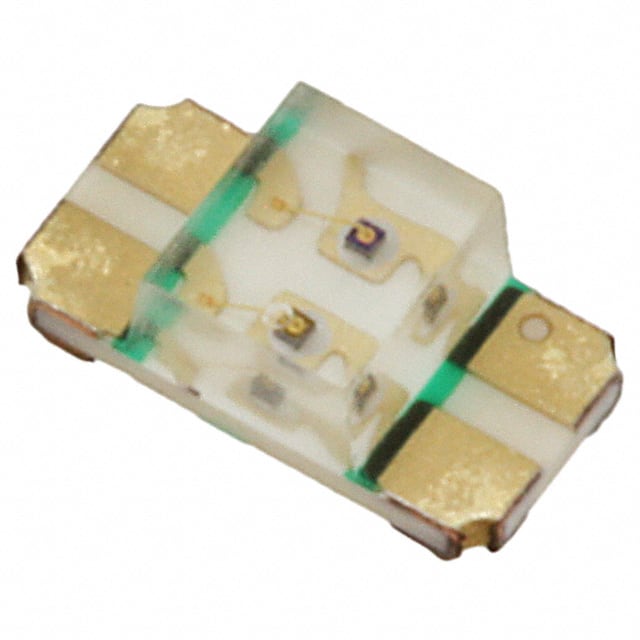

The Lite-On Inc. LTST-C235KGKRKT is a dual color chip LED designed for surface mount applications. This component provides both Green and Red light outputs, making it versatile for various indicator functions. It utilizes AlInGaP / AlInGaP chip technology for bright illumination.
The LED is housed in a 1206 (3216 Metric) package with dimensions of 3.20mm L x 1.60mm W and a maximum height of 1.10mm. It is compatible with automatic placement equipment and infrared reflow soldering processes. The clear lens has a rectangle shape with a flat top.
Key electrical characteristics include a typical forward voltage of 2V for both Green and Red colors, with a maximum of 2.4V. The typical current rating is 20mA for both colors, and the minimum luminous intensity is 18mcd. The viewing angle is a wide 130°.
This LED meets ROHS and Green Product standards. It operates within a temperature range of -30°C to +85°C and has a storage temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LTST-C235KGKRKT LED emits both Green and Red light.
The typical forward voltage for both Green and Red colors is 2V.
The LTST-C235KGKRKT LED is supplied in a 1206 (3216 Metric) package.
The operating temperature range for the LTST-C235KGKRKT LED is -30°C to +85°C.
The LTST-C235KGKRKT LED is RoHS3 Compliant.
