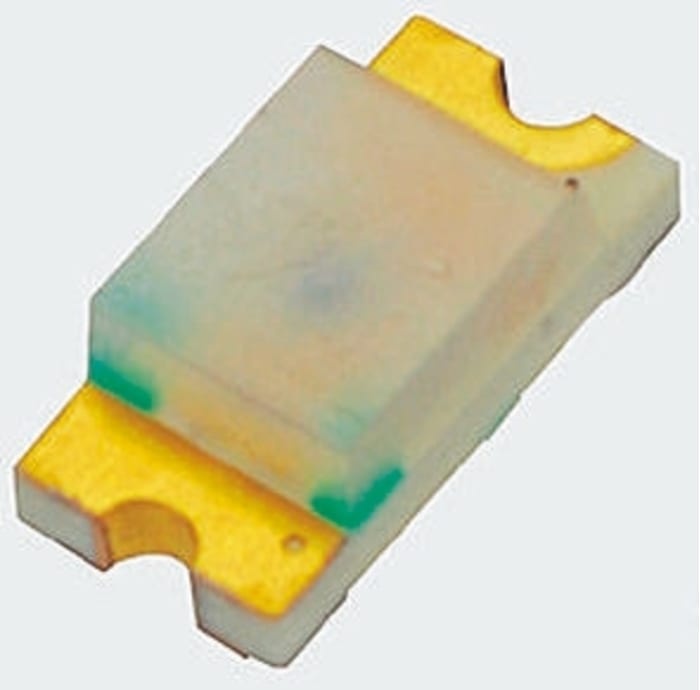

LTST-C230KGKT The Lite-On LTST-C230KGKT is a green chip LED with a clear lens. It features a 1206 package and surface mount capability.
Mfr Part #:

LTST-C230KGKT

Available from 4 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On LTST-C230KGKT is a green chip LED with a clear lens. It features a 1206 package and surface mount capability.
✓ Total Stock: 103,188 pcs
$ Price Range: $0.08

LTST-C230KGKT Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
101,790 pcs
On Request
101790 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
965 pcs
On Request
965 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
353 pcs
On Request
353 pcs On Request 1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request 21-Apr On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTST-C230KGKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Storage Temperature
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTST-C230KGKT Description

Short technical summary and product information.

The Lite-On LTST-C230KGKT is a green, clear lens chip LED designed for surface mount applications. It comes in a standard 1206 (3216 Metric) package with dimensions of 3.2mm x 1.6mm and a maximum height of 1.10mm.



This LED emits green light with a dominant wavelength of 571nm and a peak emission wavelength of 574nm. It offers a typical luminous intensity of 35mcd at a forward current of 20mA, with a typical forward voltage of 2.0V (max 2.4V). The viewing angle is a wide 130 degrees.



Key electrical and optical characteristics include a maximum power dissipation of 75mW and a reverse voltage rating of 5V. The operating temperature range is -30°C to +85°C, and storage temperature is -40°C to +85°C. It is compatible with automatic placement equipment and infrared reflow soldering processes.



Features include RoHS3 compliance and MSL 1 rating. The LED is packaged in 8mm tape on 7" diameter reels.

LTST-C230KGKT Quick Information

Product Type: Chip LED
Series: C230
Canonical Name: Lite-On LTST-C230KGKT Green Chip LED
Subcategory: Discrete LED

LTST-C230KGKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTST-C230KGKT Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTST-C230KGKT Features

  • Green AlInGaP Chip LED.
  • 1206 (3216 Metric) SMD package.
  • 571nm dominant wavelength.
  • 35mcd typical luminous intensity.
  • 130° wide viewing angle.

LTST-C230KGKT Applications

  • Used in electronic indicator panels
  • Suitable for display backlighting
  • Ideal for automotive dashboard indicators
  • Applied in industrial control panels

LTST-C230KGKT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the dominant wavelength of the LTST-C230KGKT LED?

The dominant wavelength is 571nm.

What is the typical luminous intensity of this green LED?

The typical luminous intensity is 35mcd at 20mA.

What is the viewing angle for the LTST-C230KGKT LED?

The viewing angle is 130 degrees.

What is the package type for this Lite-On LED?

The package type is 1206 (3216 Metric).

What is the operating temperature range for this LED?

The operating temperature range is -30°C to +85°C.
