| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,880 pcs
|
1880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

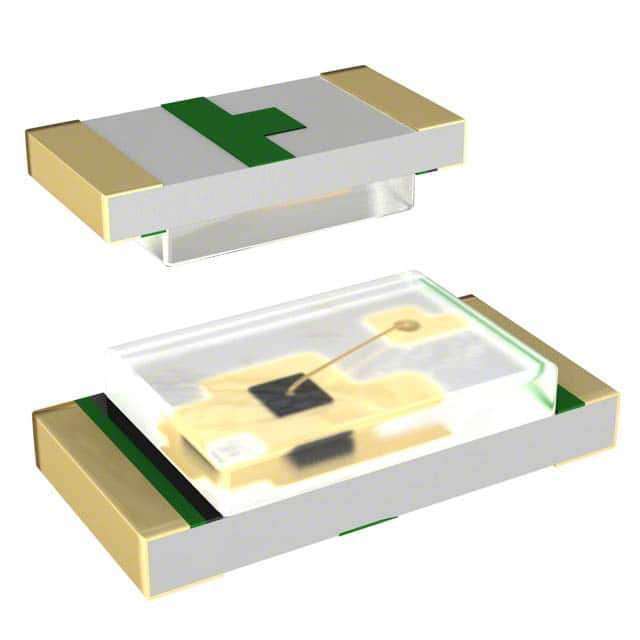

This Lite-On Inc. LTST-C194KSKT is a yellow SMD LED designed for surface mount applications. It features an AlInGaP chip and a water clear lens, providing a dominant wavelength of 587.0 nm to 597.0 nm and a peak emission wavelength of 588 nm.
The LED has a typical forward voltage of 2.00V at 20mA and a maximum power dissipation of 75mW. Its viewing angle is 130°, with a luminous intensity ranging from 28.0 mcd to 180.0 mcd at 20mA.
Packaged in an 0603 (1608 Metric) case, this component is compatible with automatic placement equipment and infrared/vapor phase reflow soldering processes. It operates within a temperature range of -55°C to +85°C and meets RoHS3 compliance.
Key specifications include a size of 1.60mm L x 0.80mm W, a maximum height of 0.45mm, and a lens size of 1.15mm x 0.80mm. The LED is also described as a green product.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2.00V at 20mA.
The dominant wavelength ranges from 587.0 nm to 597.0 nm.
The viewing angle is 130 degrees.
The operating temperature range is -55°C to +85°C.
It is a 0603 (1608 Metric) SMD LED.
Yes, it is RoHS3 Compliant.
