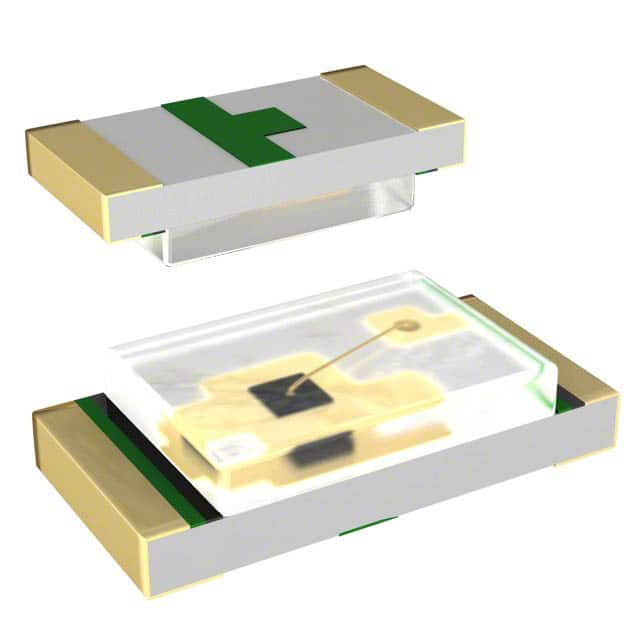

LTST-C194KGKT The Lite-On Inc. LTST-C194KGKT is a green surface-mount LED designed for discrete indication. It offers a 130° viewing angle and a typical luminous intensity of 65mcd.
Mfr Part #:

LTST-C194KGKT

Available from 2 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTST-C194KGKT is a green surface-mount LED designed for discrete indication. It offers a 130° viewing angle and a typical luminous intensity of 65mcd.
✓ Total Stock: 5,992 pcs
$ Price Range: $0.08

LTST-C194KGKT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
2,992 pcs
On Request
2992 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTST-C194KGKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTST-C194KGKT Description

Short technical summary and product information.

The Lite-On Inc. LTST-C194KGKT is a green, surface-mount (SMD) LED suitable for various indication applications. This component features a 0603 (1608 Metric) package with dimensions of 1.60mm L x 0.80mm W and a maximum height of 0.45mm.



Key electrical characteristics include a forward voltage of 2.1V and a rated current of 20mA. The LED emits green light with a dominant wavelength of 567.5-576.5nm and a peak emission wavelength of 574nm. It provides a wide viewing angle of 130° and a luminous intensity typically rated at 65mcd.



The LTST-C194KGKT is compatible with automatic placement equipment and infrared reflow soldering processes. It operates within a temperature range of -30°C to +85°C and is packaged in 8mm tape on 7" diameter reels.

LTST-C194KGKT Quick Information

Product Type: SMD LED
Canonical Name: Lite-On Inc. LTST-C194KGKT Green SMD LED
Subcategory: Discrete LED

LTST-C194KGKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTST-C194KGKT Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTST-C194KGKT Features

  • Green SMD LED for discrete indication.
  • 0603 package for surface mounting.
  • 2.1V forward voltage, 20mA current.
  • 130 degree wide viewing angle.
  • Packaged in 8mm tape on 7" reels.

LTST-C194KGKT Applications

  • Ideal for status indication.
  • Suitable for compact designs.
  • Used in consumer electronics.
  • Applicable for panel lighting.

LTST-C194KGKT FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the LTST-C194KGKT LED?

The typical operating voltage for the LTST-C194KGKT LED is 2.1V.

What is the package type of the LTST-C194KGKT LED?

The LTST-C194KGKT LED is supplied in a 0603 (1608 Metric) surface mount package.

What is the operating temperature range for this LED?

The operating temperature range for the LTST-C194KGKT LED is -30°C to +85°C.

What is the RoHS status of the LTST-C194KGKT LED?

The RoHS status is RoHS3 Compliant.
