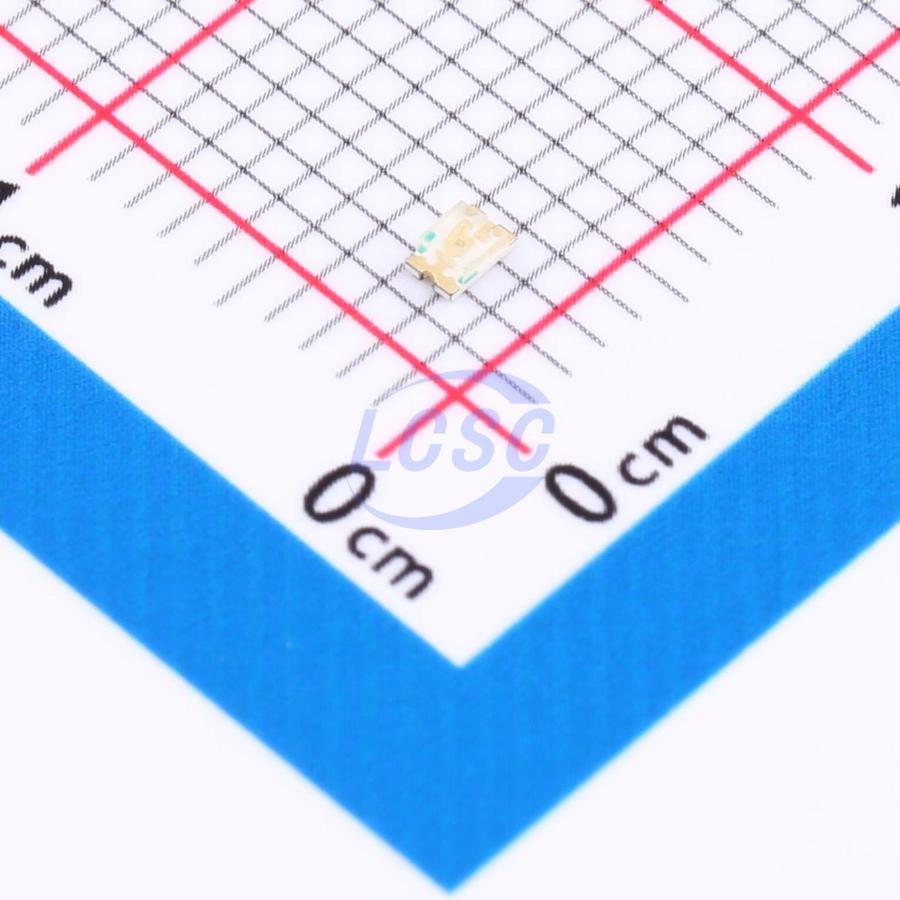

LTST-C171TBKT The Lite-On Inc. LTST-C171TBKT is a blue SMD chip LED designed for discrete indication. It operates at 20mA with a typical forward voltage of 2.80V to 3.80V.
Mfr Part #:

LTST-C171TBKT

Available from 3 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTST-C171TBKT is a blue SMD chip LED designed for discrete indication. It operates at 20mA with a typical forward voltage of 2.80V to 3.80V.
✓ Total Stock: 4,574 pcs
$ Price Range: $0.01

LTST-C171TBKT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,250 pcs
On Request
2250 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
2,238 pcs
On Request
2238 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
86 pcs
On Request
86 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTST-C171TBKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTST-C171TBKT Description

Short technical summary and product information.

This Lite-On Inc. LTST-C171TBKT is a blue SMD chip LED suitable for discrete indication applications. It features a compact 0805 (2012 Metric) package measuring 2.00mm L x 1.25mm W with a maximum height of 0.90mm. The LED emits blue light with a peak emission wavelength of 468nm and a dominant wavelength between 465nm and 475nm. It offers a wide viewing angle of 130 degrees and a luminous intensity typically rated at 104mcd at 20mA forward current.



The component is compatible with automatic placement equipment and supports infrared and vapor phase reflow soldering processes. It has an operating temperature range of -20°C to +80°C and a storage temperature range of -30°C to +100°C. The LED meets RoHS and Green Product standards, making it suitable for environmentally conscious designs.

LTST-C171TBKT Quick Information

Product Type: LED
Canonical Name: Lite-On Inc. LTST-C171TBKT Blue SMD Chip LED
Subcategory: Discrete LED

LTST-C171TBKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTST-C171TBKT Estimated Pricing

Qty Low High
1+ $0.01 $0.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTST-C171TBKT Features

  • Blue SMD chip LED for discrete indication.
  • Compact 0805 (2012 Metric) package.
  • Wide 130-degree viewing angle.
  • RoHS and Green Product compliant.
  • Compatible with reflow soldering processes.

LTST-C171TBKT Applications

  • Ideal for status indicator lights.
  • Suitable for small electronic devices.
  • Used in panel and equipment indicators.
  • Applications requiring blue light emission.

LTST-C171TBKT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the forward voltage for the LTST-C171TBKT LED?

The forward voltage for the LTST-C171TBKT LED is typically between 2.80V and 3.80V at 20mA.

What is the dominant wavelength of the LTST-C171TBKT LED?

The dominant wavelength of the LTST-C171TBKT LED is between 465.0 nm and 475.0 nm when the forward current is 20mA.

What is the viewing angle of the LTST-C171TBKT LED?

The viewing angle of the LTST-C171TBKT LED is 130 degrees.

What is the operating temperature range for this LED?

The operating temperature range for the LTST-C171TBKT LED is -20°C to +80°C.

Is the LTST-C171TBKT LED RoHS compliant?

Yes, the LTST-C171TBKT LED is RoHS3 Compliant.

What is the package type for the LTST-C171TBKT LED?

The LTST-C171TBKT LED is supplied in an 0805 (2012 Metric) package for surface mounting.
