| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,023 pcs
|
29023 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,385 pcs
|
2385 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,738 pcs
|
1738 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
265 pcs
|
265 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 07:15:11 | |
|
225 pcs
|
225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

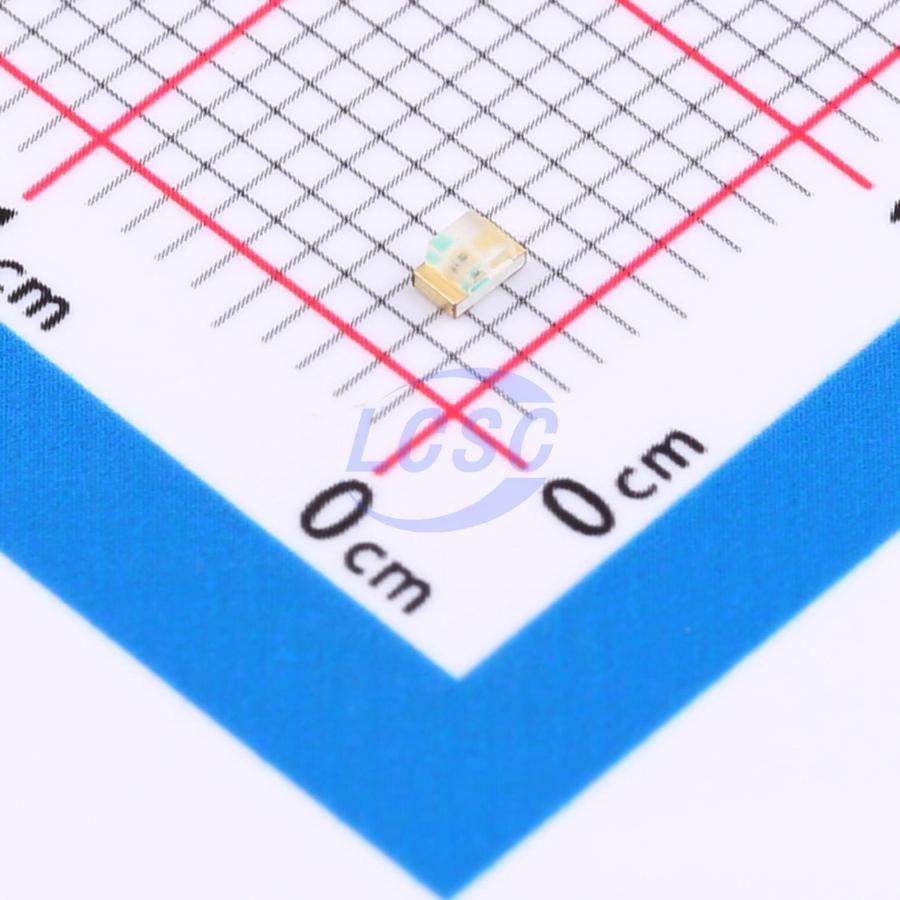

The Lite-On Inc. LTST-C170KGKT is a green Surface Mount Device (SMD) LED, featuring a clear lens and a compact 0805 (2012 Metric) package. This component is suitable for automated placement and infrared reflow soldering processes, making it ideal for space-constrained electronic equipment.
Key electrical characteristics include a typical forward voltage of 2V and a DC forward current of 20mA, with a luminous intensity of 35mcd. The LED emits green light with a dominant wavelength of 571nm and a peak emission wavelength of 574nm. It offers a wide viewing angle of 130°.
Designed for a variety of applications, this SMD LED is compatible with automatic placement equipment and infrared reflow soldering. Its miniature size and specific configurations are beneficial for automated PC board assembly. The operating temperature range is from -55°C to +85°C.
This LED is packaged in 8mm tape on 7" diameter reels, supporting efficient manufacturing processes. It meets RoHS3 compliance standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the LTST-C170KGKT LED is 2V at 20mA.
The LTST-C170KGKT LED is supplied in an 0805 (2012 Metric) package.
The operating temperature range for the LTST-C170KGKT LED is -55°C to +85°C.
The LTST-C170KGKT LED is RoHS3 Compliant.
The dominant wavelength of the LTST-C170KGKT LED is 571nm.
The viewing angle of the LTST-C170KGKT LED is 130°.
