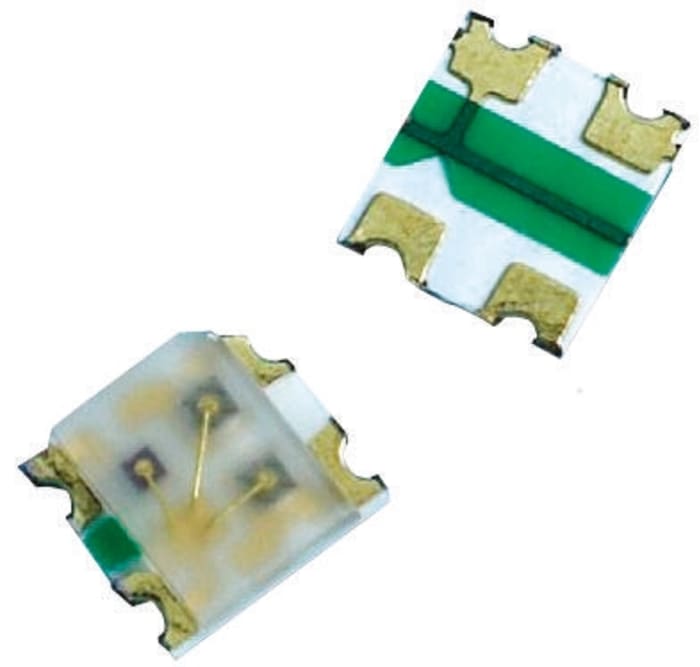

LTST-C155KGJRKT The Lite-On Inc. LTST-C155KGJRKT is a dual color SMD LED offering both Green and Red light emission. It features a 130° viewing angle and is suitable for surface mount applications.
Mfr Part #:

LTST-C155KGJRKT

Available from 4 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTST-C155KGJRKT is a dual color SMD LED offering both Green and Red light emission. It features a 130° viewing angle and is suitable for surface mount applications.
✓ Total Stock: 13,505 pcs
$ Price Range: $0.03

LTST-C155KGJRKT Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,226 pcs
On Request
8226 pcs On Request 1 On Request On Request 15+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2,780 pcs
On Request
2780 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,420 pcs
On Request
2420 pcs On Request 1 On Request On Request 13+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
79 pcs
On Request
79 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTST-C155KGJRKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Configuration
Current
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTST-C155KGJRKT Description

Short technical summary and product information.

This Lite-On Inc. dual color SMD LED, part number LTST-C155KGJRKT, provides both Green and Red light from a single package. It is designed for surface mount applications and comes in a 1210 (3225 Metric) package.



The LED operates with a typical forward voltage of 2V for both colors and a typical forward current of 20mA. It offers a luminous intensity of 35mcd for Green and 45mcd for Red at 20mA. The viewing angle is wide at 130°, and the peak emission wavelengths are 574nm for Green and 639nm for Red.



With a maximum power dissipation of 75mW and a height of 1.10mm, this component is suitable for various electronic designs. It is compatible with automatic placement equipment and infrared and vapor phase reflow soldering processes. The operating temperature range is -55°C to +85°C.

LTST-C155KGJRKT Quick Information

Product Type: LED
Canonical Name: Dual Color SMD LED
Subcategory: SMD LED

LTST-C155KGJRKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTST-C155KGJRKT Estimated Pricing

Qty Low High
1+ $0.03 $0.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTST-C155KGJRKT Features

  • Dual color Green and Red light emission.
  • Wide 130° viewing angle.
  • Surface mount 1210 package.
  • Typical 2V forward voltage.
  • Compatible with reflow soldering.

LTST-C155KGJRKT Applications

  • Indicator status lighting.
  • Dual color signaling.
  • General purpose illumination.
  • Panel mount indicators.

LTST-C155KGJRKT FAQs

5 frequently asked questions generated from this part’s specifications.
What colors does the LTST-C155KGJRKT LED emit?

The LTST-C155KGJRKT LED emits both Green and Red light.

What is the typical forward voltage for the LTST-C155KGJRKT LED?

The typical forward voltage for both Green and Red colors of the LTST-C155KGJRKT LED is 2V.

What is the viewing angle of the LTST-C155KGJRKT LED?

The viewing angle of the LTST-C155KGJRKT LED is 130°.

What package type is the LTST-C155KGJRKT LED supplied in?

The LTST-C155KGJRKT LED is supplied in the 1210 (3225 Metric) package.

What are the operating temperature limits for the LTST-C155KGJRKT LED?

The operating temperature range for the LTST-C155KGJRKT LED is -55°C to +85°C.
