| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 07:15:11 |
| Category | |
| Manufacturer Name | |
| Color | |
| Common Pin | |
| Current | |
| Digit | |
| Display Type | |
| Forward Voltage | |
| Lead Spacing | |
| Millicandela Rating | |
| Number of Characters | |
| Operating Temperature Range | |
| Power Dissipation (Max) | |
| Reverse Current | |
| Voltage | |
| Wavelength |

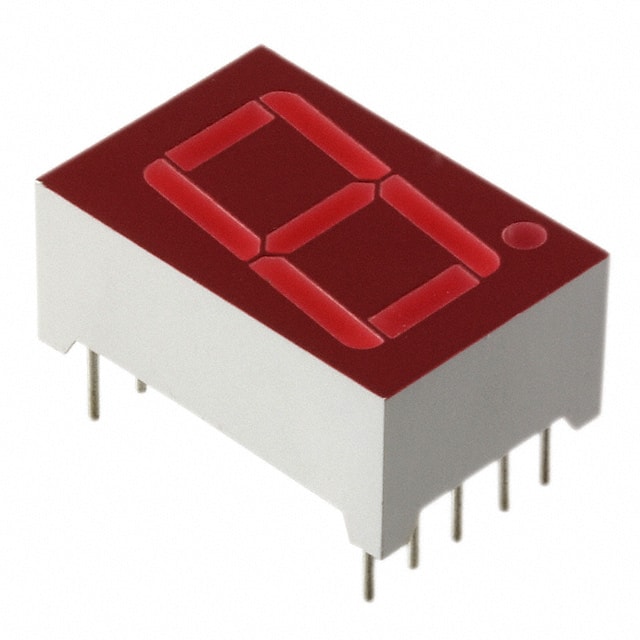

The Lite-On LTS-6980HR is a high-efficiency red, 0.56 inch (14.22 mm) digit height display. It utilizes GaAsP on a transparent GaP substrate for its LED chips, resulting in a red face and red segments. This display features continuous uniform segments, low power requirements, excellent character appearance, high brightness, and high contrast.
With a wide viewing angle and solid-state reliability, the LTS-6980HR is categorized for luminous intensity. It operates with a typical forward voltage of 2.0V at 20mA and has a dominant wavelength of 623nm. The display is housed in a 10-DIP package, measuring 0.750" H x 0.496" W x 0.315" D.
This component is suitable for various applications requiring clear numeric or character display. Its operating temperature range is -35°C to +85°C, and it has a maximum power dissipation of 75mW per segment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The digit height is 0.56 inches (14.22 mm).
The display is red.
The typical forward voltage is 2.0V at 20mA.
The typical luminous intensity is 2400 μcd at 10mA.
The operating temperature range is -35°C to +85°C.
The display is supplied in a 10-DIP package.
