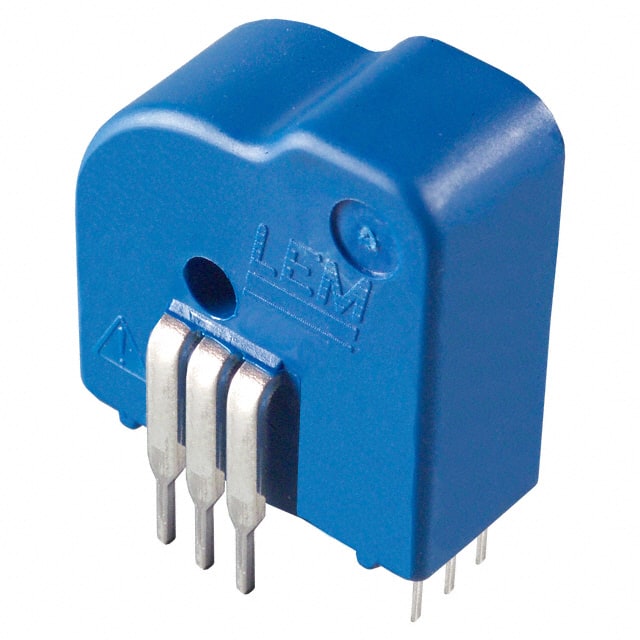

The LEM USA Inc. LTS 25-NP is a closed-loop Hall effect current transducer for the electronic measurement of DC, AC, pulsed, and mixed currents with galvanic isolation. It features a primary nominal current of 25A and a measuring range up to ±80A.
This sensor operates with a 5V unipolar voltage supply and provides a ratiometric voltage output. Key electrical specifications include a sensitivity of 25mV/A, ±0.2% accuracy at nominal current, and ±0.1% linearity error. The frequency bandwidth extends from DC up to 200kHz, with a fast response time of 0.4µs.
The LTS 25-NP is designed for through-hole mounting and comes in a module package. It operates within an ambient temperature range of -40°C to +85°C. Standards like EN 50178 and IEC 60950-1 are cited, with rated isolation voltages of 600V single and 300V reinforced.
Applications include AC variable speed drives, static converters, battery-supplied systems, UPS, SMPS, and welding power supplies, primarily within the industrial domain.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The primary nominal current for the LTS 25-NP is 25A RMS.
The LTS 25-NP operates on a 5V supply voltage.
The accuracy of the LTS 25-NP at nominal current (IPN) and 25°C is ±0.2%.
The LTS 25-NP can operate in an ambient temperature range of -40°C to +85°C.
The frequency bandwidth of the LTS 25-NP is DC to 100kHz (-0.5dB) and DC to 200kHz (-0.5 to 1dB).
The LTS 25-NP is designed for through-hole mounting.
