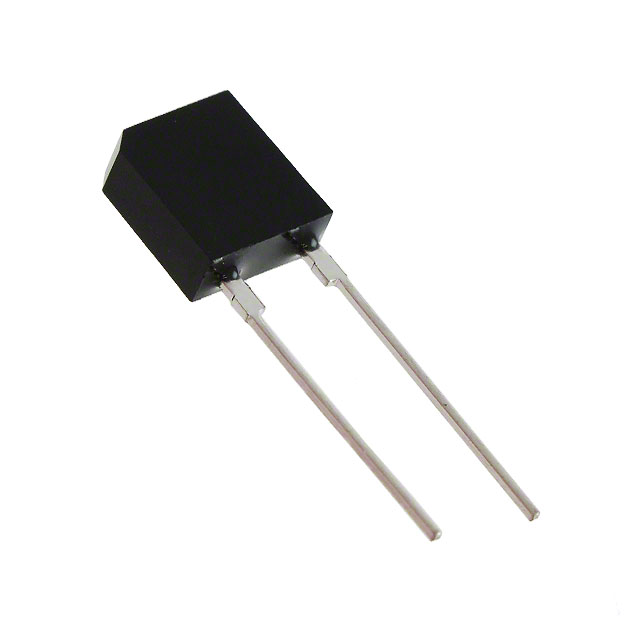

LTR-546AD The Lite-On Inc. LTR-546AD is a radial, side-view photodiode sensor with a peak wavelength of 900nm. It features a 50ns response time and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

LTR-546AD

Available from 1 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTR-546AD is a radial, side-view photodiode sensor with a peak wavelength of 900nm. It features a 50ns response time and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 2,620 pcs
$ Price Range: $1.50

LTR-546AD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,620 pcs
On Request
2620 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTR-546AD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Operating Temperature
Response Time
Storage Temperature
Tape & Reel
Voltage
Wavelength
View Similar Products (0)

LTR-546AD Description

Short technical summary and product information.

The LTR-546AD from Lite-On Inc. is an optical sensor specifically designed as a photodiode. It is housed in a radial, side-view package suitable for through-hole mounting.



This component operates with a peak wavelength sensitivity at 900nm. Key electrical characteristics include a maximum power dissipation of 150mW, a maximum reverse voltage of 30V, and a typical dark current of 30nA. The response time is rated at 50ns, with both maximum rise and fall times also specified at 50ns.



The operating temperature range for the LTR-546AD is from -40°C to 85°C, making it suitable for various environmental conditions. The sensor is supplied in bulk packaging.

LTR-546AD Quick Information

Product Type: Photodiode Sensor
Canonical Name: LTR-546AD Photodiode Sensor
Subcategory: Optical Sensors

LTR-546AD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTR-546AD Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTR-546AD Features

  • Photodiode sensor with 900nm peak wavelength.
  • Fast 50ns response time.
  • Operates from -40°C to 85°C.
  • Through-hole mounting, radial package.
  • Maximum reverse voltage of 30V.

LTR-546AD Applications

  • Used in optical sensing systems
  • Suitable for light detection applications
  • Ideal for optical communication devices
  • Applicable in sensing and measurement systems

LTR-546AD FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak wavelength of the LTR-546AD photodiode?

The peak wavelength is 900nm.

What is the response time of the LTR-546AD sensor?

The response time is 50ns.

What is the operating temperature range for the LTR-546AD?

The operating temperature range is -40°C to 85°C.

How is the LTR-546AD mounted?

It is a through-hole mounted component.

What is the maximum reverse voltage for the LTR-546AD?

The maximum reverse voltage is 30V.
