LTMM-120-02-L-D-RA 40 position 2.00mm pitch right-angle through-hole shrouded header with male pins, 2 rows, operating temperature -55°C to 125°C.
Mfr Part #:

LTMM-120-02-L-D-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
40 position 2.00mm pitch right-angle through-hole shrouded header with male pins, 2 rows, operating temperature -55°C to 125°C.
✓ Total Stock: 7 pcs
$ Price Range: $3.91 - $7.37

LTMM-120-02-L-D-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 1613 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTMM-120-02-L-D-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

LTMM-120-02-L-D-RA Description

Short technical summary and product information.

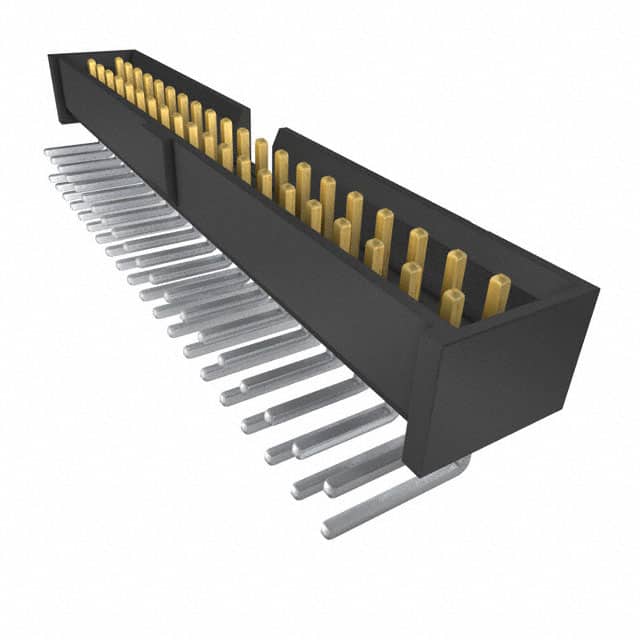

The Samtec LTMM-120-02-L-D-RA is a 40-position, shrouded header connector with a 2.00mm pitch arranged in two rows. It features a right-angle through-hole mounting style with solder termination. The male pins are phosphor bronze with tin finish and the insulator is black liquid crystal polymer (LCP).



The connector includes a 4-wall shroud for protection and a keying slot for proper alignment. All 40 positions are loaded. The contact length is 3.05mm and the contact finish thickness is 0.25µm. The insulation height is 6.03mm. The push-pull fastening type provides secure mating.



This component is designed for board-to-board applications and is rated for operating temperatures from -55°C to 125°C. The square contact shape ensures reliable electrical connections.

LTMM-120-02-L-D-RA Quick Information

Product Type: Header, Male Pins
Series: LTMM-1XX
Canonical Name: Samtec LTMM-120-02-L-D-RA 40 Position 2.00mm Pitch Header, Male Pins, Through Hole, Right Angle
Subcategory: Header, Male Pin

LTMM-120-02-L-D-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTMM-120-02-L-D-RA Estimated Pricing

Qty Low High
1+ $7.37 $7.37
10+ $6.44 $6.44
26+ $6.20 $6.20
52+ $6.13 $6.13
104+ $5.33 $5.33
260+ $5.14 $5.14
507+ $4.65 $4.65
1,001+ $4.04 $4.04
2,002+ $3.91 $3.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTMM-120-02-L-D-RA Features

  • 40 position, 2.00mm pitch header.
  • Right-angle through-hole mounting.
  • Shrouded 4-wall housing with keying slot.
  • Phosphor bronze contacts with tin finish.
  • Operates from -55°C to 125°C.

LTMM-120-02-L-D-RA Applications

  • Board-to-board interconnect applications.
  • Right-angle PCB mounting for space-constrained designs.
  • Industrial control and automation equipment.

LTMM-120-02-L-D-RA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of LTMM-120-02-L-D-RA?

2.00mm

How many positions does this connector have?

40 positions in 2 rows.

What mounting style does this header use?

Through-hole, right angle.

What is the operating temperature range?

-55°C to 125°C.

Is the connector shrouded?

Yes, a 4-wall shroud is included.
