| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Charge Current | |
| Current | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The LTM8062AEV#PBF from Analog Devices is a versatile µModule power tracking battery charger designed for various applications. It operates with an input voltage range of 4.95V to 32V, with an absolute maximum rating of 40V, and provides a maximum charge current of 2A. This device is suitable for charging single-cell batteries across multiple chemistries, including Li-Ion/Polymer, LiFePO4, and SLA.
Key features include a constant-current/constant-voltage charge characteristic, resistor-programmable float voltage, and an input voltage regulation loop for peak power tracking in solar applications. It also incorporates preconditioning trickle charge, bad battery detection, and user-selectable termination schemes like C/10 or a termination timer. The integrated input reverse voltage protection enhances system reliability.

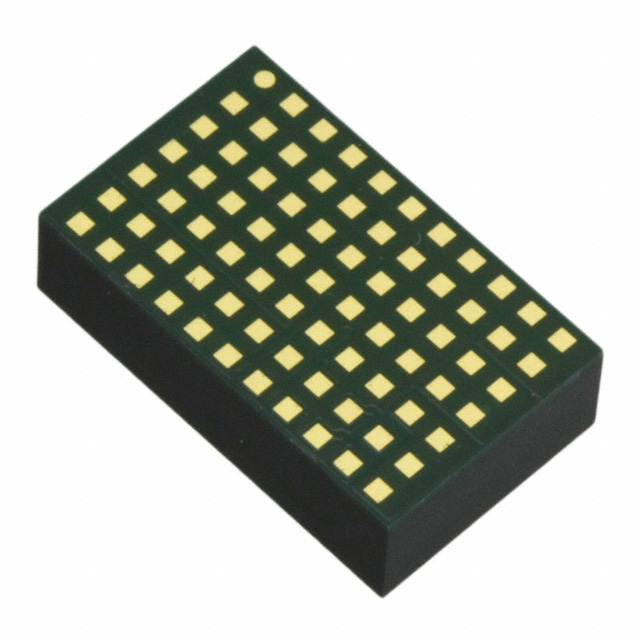

The LTM8062AEV#PBF is packaged in a thermally enhanced, compact 77-LGA (15mm x 9mm) over-molded land grid array package, making it suitable for automated surface mount assembly. Its operating temperature range is -40°C to 125°C (TA).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.95V to 32V, with an absolute maximum rating of 40V.
The LTM8062AEV#PBF provides a maximum charge current of 2A.
It accommodates Li-Ion/Polymer, LiFePO4, and SLA batteries.
The operating temperature range is -40°C to 125°C (TA).
It is supplied in a 77-LGA (15x9) surface mount package.
