| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Size / Dimension | |
| Storage Temperature | |
| Supplier Device Package | |
| Switching Frequency (Range) | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output 1 (Max) | |
| Voltage - Output 1 (Min) | |
| Width |

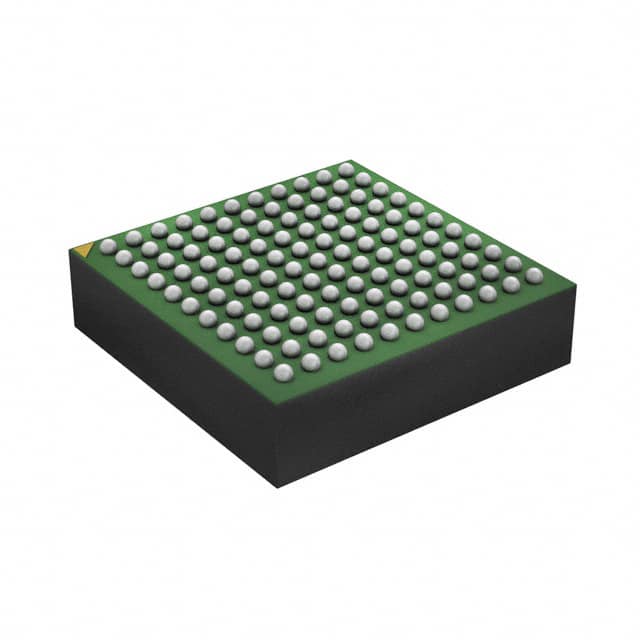

The LTM8055IY#PBF is a non-isolated buck-boost µModule (micromodule) regulator from Analog Devices. It integrates the switching controller, power switches, inductor, and support components into a compact 121-BBGA package. The device operates over an input voltage range of 5V to 36V and can regulate output voltages from 1.2V up to 36V, making it suitable for applications where the output voltage may be higher, lower, or equal to the input.
Key electrical specifications include a maximum output current of 8.5A and efficiency up to 97.5%. The switching frequency is adjustable from 100kHz to 800kHz, with synchronization capability from 200kHz to 700kHz. Features include adjustable input and output average current limits, input and output current monitors, over-temperature protection, and the ability to parallel multiple units for higher output current.
The device is housed in a 15mm × 15mm × 4.92mm surface-mount BGA package, suitable for automated assembly. It is RoHS3 compliant and rated for operation from -40°C to 125°C. Common applications include high-power battery-operated devices, industrial control systems, and solar-powered voltage regulators.
| Qty | Low | High |
|---|---|---|
| 1+ | $64.75 | $64.75 |
| 10+ | $53.52 | $53.52 |
| 25+ | $50.71 | $50.71 |
| 119+ | $47.32 | $47.32 |
| 238+ | $47.31 | $47.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V to 36V.
1.2V to 36V.
8.5A.
Up to 97.5%.
-40°C to 125°C.
Yes, RoHS3 compliant (verified from datasheet).
121-BBGA Module (15mm x 15mm x 4.9mm).
