| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
151 pcs
|
151 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Range | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Typ) | |
| Output Current Max | |
| Output Voltage Max | |
| Output Voltage Range | |
| Supplier Device Package | |
| Switching Frequency | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

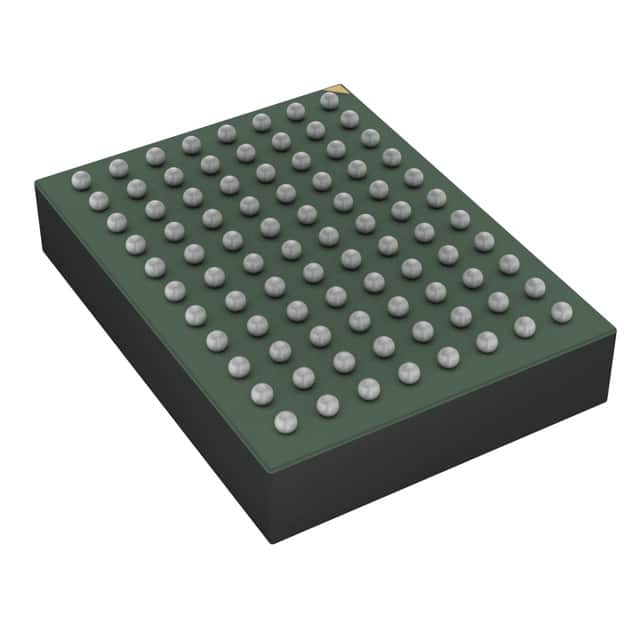

The LTM8054EY#PBF is a 36VIN, 5.4A buck-boost µModule regulator from Analog Devices (Linear Technology). It is a non-isolated PoL (Point-of-Load) module that integrates the switching controller, power switches, inductor, and support components in a compact 88-BBGA package. The device operates over a wide input voltage range of 5V to 36V and can regulate output voltages from 1.2V to 36V, making it suitable for applications where the input voltage may be above, below, or equal to the output voltage. Key features include selectable switching frequency from 100kHz to 800kHz, synchronization capability, input and output average current regulation, and up to 94% efficiency under typical conditions (24VIN, 12VOUT). The module is designed for surface mount assembly and is RoHS compliant. It is housed in a 15mm x 11.25mm x 3.42mm overmolded BGA package. Typical applications include high power battery-operated devices, industrial control, solar powered voltage regulators, and battery charging.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.06 | $44.06 |
| 10+ | $36.01 | $36.01 |
| 25+ | $33.99 | $33.99 |
| 119+ | $31.56 | $31.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 5V to 36V.
The output voltage is adjustable from 1.2V to 36V.
It is an 88-BBGA module with dimensions 15mm x 11.25mm x 3.42mm, suitable for surface mount.
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS3 compliant as per the datasheet.
The peak output current is 5.4A at 24VIN, 12VOUT.
The switching frequency is selectable from 100kHz to 800kHz.
