| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Industrial Grade | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min) | |
| Width |

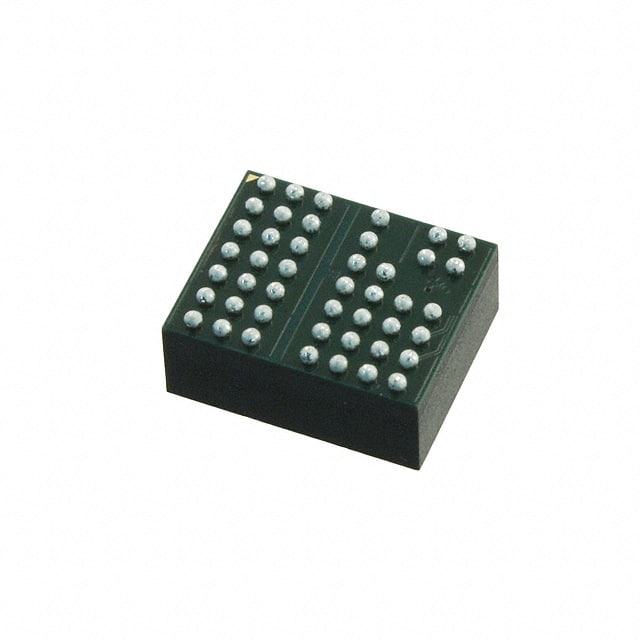

The LTM8047IY#PBF is an isolated flyback µModule DC/DC converter from Analog Devices (formerly Linear Technology). It integrates the switching controller, power switches, transformer, and support components in a compact 45-BBGA package.
Key specifications include a wide input voltage range of 3.1V to 32V, an adjustable output voltage from 2.5V to 12V, and a maximum output current of 440mA. The module provides 725VDC isolation, making it suitable for applications requiring galvanic isolation such as industrial sensors and ground loop mitigation.
The device features undervoltage lockout (UVLO) and operates over a temperature range of -40°C to 125°C. It is surface mountable and comes in a 45-BGA (11.25mm x 9mm) package with a low profile of 4.9mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.79 | $20.79 |
| 10+ | $20.45 | $20.45 |
| 25+ | $19.69 | $19.69 |
| 100+ | $18.53 | $18.53 |
| 168+ | $18.19 | $18.19 |
| 504+ | $18.00 | $18.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.1V to 32V.
The output voltage is adjustable from 2.5V to 12V, and the maximum output current is 440mA.
The isolation voltage is 725VDC.
The operating temperature range is -40°C to 125°C.
It comes in a 45-BBGA Module package, specifically a 45-BGA (11.25mm x 9mm) surface mount package.
The part is listed as RoHS3 Compliant, though this status is unverified.
