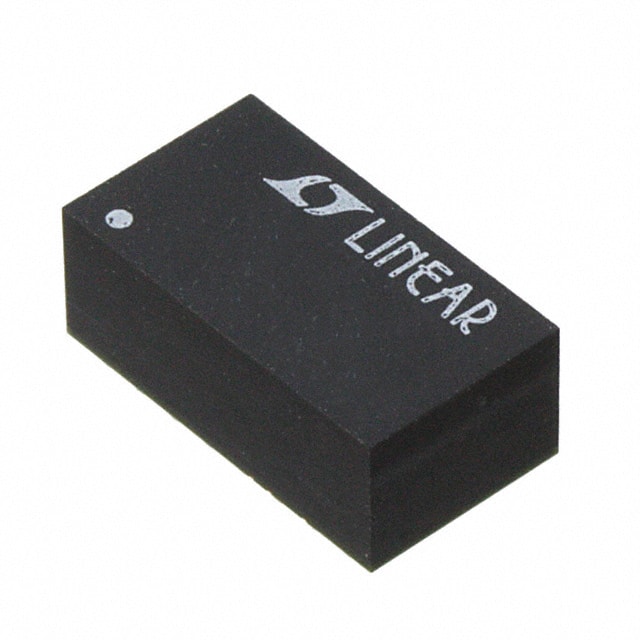

LTM8045IY The LTM8045IY is a non-isolated PoL module from Analog Devices that can be configured as a SEPIC or inverting converter. It has an input voltage range of 2.8V to 18V and provides output voltages from ±2.5V to ±15V with up to 700mA output current.
Mfr Part #:

LTM8045IY

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The LTM8045IY is a non-isolated PoL module from Analog Devices that can be configured as a SEPIC or inverting converter. It has an input voltage range of 2.8V to 18V and provides output voltages from ±2.5V to ±15V with up to 700mA output current.
✓ Total Stock: 35 pcs
$ Price Range: $22.56 - $25.75

LTM8045IY Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTM8045IY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Features
Height
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Storage Temperature
Supplier Device Package
Topology
Type
Voltage
Width
View Similar Products (0)

LTM8045IY Description

Short technical summary and product information.

The LTM8045IY is a µModule DC/DC converter from Analog Devices that supports both SEPIC and inverting topologies, allowing positive or negative output voltages from a single design. The input voltage range is 2.8V to 18V, making it suitable for a variety of power sources.



Output voltage is adjustable from 2.5V to 15V in SEPIC mode or -2.5V to -15V in inverting mode. Maximum output current is 700mA at VIN=12V, VOUT=±2.5V and 375mA at VIN=12V, VOUT=±15V. The switching frequency is selectable from 200kHz to 2MHz, and features include programmable soft-start, undervoltage lockout (UVLO), and overtemperature protection (OTP).



The LTM8045IY is housed in a compact 40-BGA package measuring 11.25mm x 6.25mm x 4.92mm, suitable for surface mount assembly. It operates over a temperature range of -40°C to 125°C. Applications include commercial ITE equipment, battery-powered regulators, and local negative voltage generation.

LTM8045IY Quick Information

Product Type: DC DC Converter
Series: LTM8045
Canonical Name: Non-Isolated PoL Module, SEPIC or Inverting Topology
Subcategory: SEPIC or Inverting Converter

LTM8045IY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3
REACH Status: REACH Unaffected

LTM8045IY Estimated Pricing

Qty Low High
1+ $25.75 $25.75
5+ $24.80 $24.80
10+ $24.40 $24.40
25+ $23.87 $23.87
50+ $23.49 $23.49
100+ $23.10 $23.10
273+ $22.56 $22.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTM8045IY Features

  • Supports SEPIC or inverting topology configuration.
  • Wide input voltage range from 2.8V to 18V.
  • Up to 700mA output current at ±2.5V output.
  • Selectable switching frequency from 200kHz to 2MHz.
  • Compact 40-BGA package for surface mount assembly.

LTM8045IY Applications

  • Used in commercial ITE (information technology equipment).
  • Ideal for battery-powered voltage regulation.
  • Generates local negative voltage rails.
  • Suitable for low noise amplifier power supplies.

LTM8045IY FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the LTM8045IY?

2.8V to 18V.

What output voltages can the LTM8045IY provide?

In SEPIC configuration: 2.5V to 15V. In inverting configuration: -2.5V to -15V.

What is the maximum output current of the LTM8045IY?

Up to 700mA at VIN=12V, VOUT=±2.5V, and up to 375mA at VIN=12V, VOUT=±15V.

What is the operating temperature range?

-40°C to 125°C.

What package is the LTM8045IY available in?

40-BGA (11.25mm × 6.25mm × 4.92mm).

Is the LTM8045IY RoHS compliant?

According to available data, it is RoHS3 compliant, but this is unverified and conflicts with some distributor data. Treat as low confidence.

What switching frequency does the LTM8045IY support?

Selectable from 200kHz to 2MHz.
