| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,509 pcs
|
2509 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min/Fixed) | |
| Width |

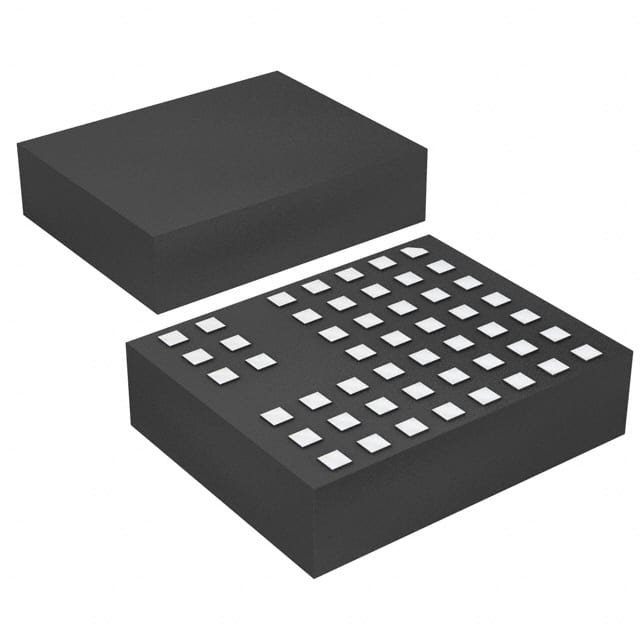

The LTM8023IV#PBF is a complete 2A, DC/DC step-down power supply µModule regulator from Analog Devices. It integrates the switching controller, power switches, inductor, and all support components in a compact 50-LGA package. Operating over an input voltage range of 3.6V to 36V, it supports an output voltage range of 0.8V to 10V and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only external bulk input and output filter capacitors are needed to complete the design. The low profile 11.3mm x 9.0mm x 2.8mm package enables utilization of unused space on PC boards for high density point-of-load regulation. The device features current mode control, programmable soft-start, and is suitable for automated assembly. Applications include automotive battery regulation, portable products, distributed supply regulation, and industrial supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.06 | $20.06 |
| 10+ | $19.74 | $19.74 |
| 25+ | $19.00 | $19.00 |
| 100+ | $17.87 | $17.87 |
| 210+ | $17.39 | $17.39 |
| 420+ | $17.30 | $17.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.6V to 36V.
50-BLGA Module (50-LGA 11.25x9).
-40°C to 85°C.
The component is marked as RoHS3 compliant, but this is unverified.
200kHz to 2.4MHz, selectable via resistor.
2A.
Surface mount.
