| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Control Features | |
| Current | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min) | |
| Width |
The LTM8020MPV#PBF is a complete 200mA, DC/DC step-down power supply from Analog Devices Inc. This µModule regulator integrates the switching controller, power switches, inductor, and all support components into a single package. Operating over a wide input voltage range of 4V to 36V, it supports an adjustable output voltage from 1.25V to 5V, set by a single external resistor.
The device is designed for high-density point-of-load regulation and meets the radiated emissions requirements of EN55022. It features current mode control and an enable control with active high logic. The LTM8020MPV#PBF is rated for an operating temperature range of -55°C to 125°C, making it suitable for demanding industrial and automotive environments.

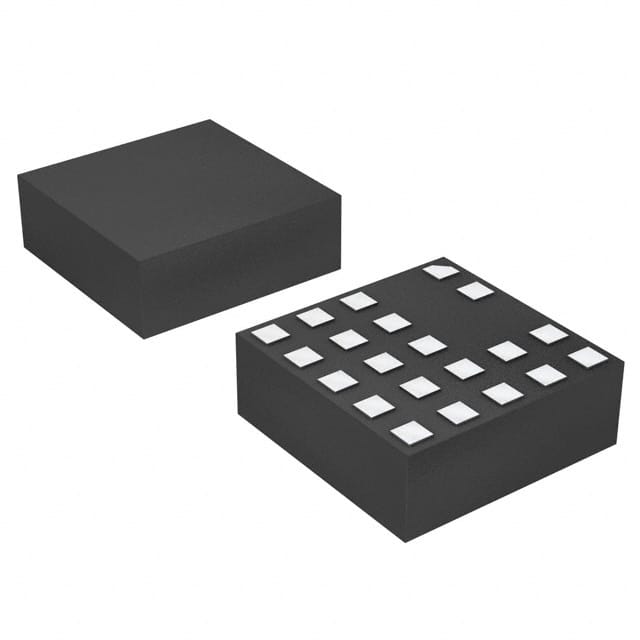

The LTM8020MPV#PBF is housed in a compact, low-profile 21-LGA module measuring 6.25mm x 6.25mm x 2.32mm. It is designed for surface mount assembly and is Pb-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.15 | $23.15 |
| 10+ | $22.78 | $22.78 |
| 25+ | $21.93 | $21.93 |
| 100+ | $21.08 | $21.08 |
| 260+ | $20.43 | $20.43 |
| 520+ | $20.28 | $20.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4V to 36V.
The output voltage is adjustable from 1.25V to 5V.
The maximum output current is 200mA.
The operating temperature range is -55°C to 125°C.
It is available in a 21-LGA Module package (6.25mm x 6.25mm).
The datasheet states the part is Pb-free and RoHS compliant.
The mounting type is Surface Mount.
