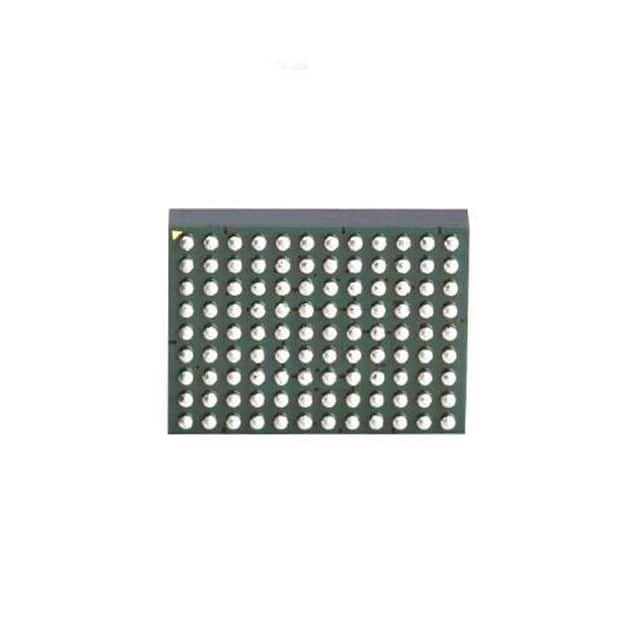

The LTM4675EY#PBF is a dual 9A or single 18A step-down µModule (micromodule) DC/DC regulator with digital power system management. It integrates power MOSFETs, inductors, and supporting components in a compact 108-BBGA package. The device accepts an input voltage from 4.5V to 17V and provides an adjustable output voltage from 0.5V to 5.5V on each channel. With dual outputs, each channel can deliver up to 9A; when combined as a single output, the regulator can deliver up to 18A. The LTM4675 includes a PMBus-compliant I2C serial interface for remote configurability and telemetry monitoring of voltage, current, temperature, and fault conditions. Protection features include overcurrent, overvoltage, overtemperature, short-circuit, and undervoltage lockout. The regulator operates over a temperature range of -40°C to 125°C and is intended for ITE (commercial) applications. The surface mount package measures 16.0mm x 11.9mm x 3.51mm and is RoHS compliant (Pb-free suffix #PBF).
| Qty | Low | High |
|---|---|---|
| 1+ | $64.34 | $64.34 |
| 10+ | $53.15 | $53.15 |
| 25+ | $50.94 | $50.94 |
| 112+ | $49.98 | $49.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 17V, and the output voltage range is 0.5V to 5.5V.
It is available in a 108-BBGA (Ball Grid Array) module package, measuring 16mm x 11.9mm x 3.51mm.
The operating temperature range is -40°C to 125°C.
Yes, it is listed as RoHS3 compliant, but this is unverified and based on low-confidence data.
It has two outputs, each capable of 9A, or it can be configured as a single 18A output.
It includes overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), short-circuit protection (SCP), and undervoltage lockout (UVLO).
It is a surface mount device.
