| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Input Voltage Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (@ Channel 1) | |
| Output Current (@ Channel 3) | |
| Output Current (Channel 2) | |
| Output Voltage Range (@ 12 A Channels) | |
| Output Voltage Range (@ 5 A Channels) | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

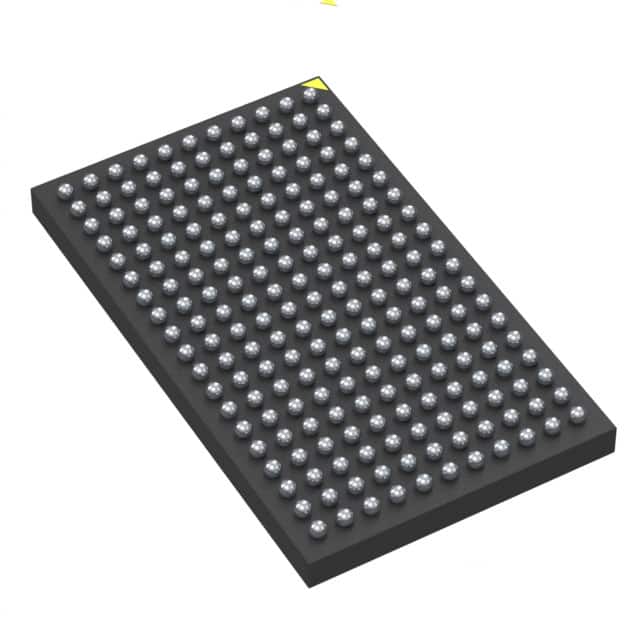

The LTM4671IY#PBF is a quad DC/DC step-down µModule (micromodule) regulator from Analog Devices. It integrates switching controllers, power FETs, inductors, and support components into a compact 16mm × 9.5mm × 4.72mm BGA package. The device provides two 12A output channels adjustable from 0.6V to 3.3V and two 5A output channels adjustable from 0.6V to 5.5V, each set by a single external resistor.
Operating over a wide input voltage range of 3.1V to 20V, the LTM4671 is suitable for multi-rail point-of-load regulation in commercial ITE equipment, FPGAs, DSPs, and ASICs. Features include remote sense, selectable Burst Mode operation, output voltage tracking, external frequency synchronization, and internal temperature sensing diode output. Fault protection covers overvoltage, overcurrent, and overtemperature conditions.
The module is surface mountable in a 209-BFBGA package with a 16mm × 9.5mm footprint. Only bulk input and output capacitors are required for operation. The LTM4671IY#PBF is listed as RoHS3 compliant (unverified) and has an MSL of Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $79.21 | $79.21 |
| 10+ | $70.51 | $70.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.1V to 20V.
Two 12A channels adjustable from 0.6V to 3.3V, and two 5A channels adjustable from 0.6V to 5.5V.
-40°C to 125°C.
209-BFBGA module, surface mount, 16mm x 9.5mm x 4.72mm.
It is listed as RoHS3 compliant, but this is unverified.
