| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

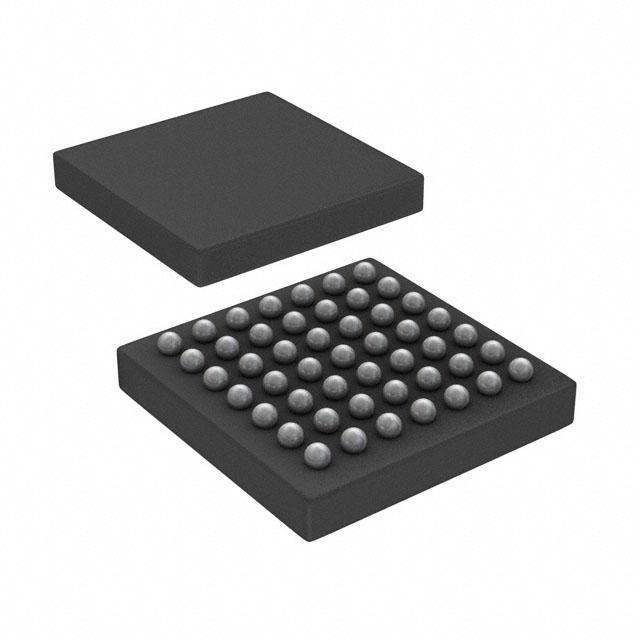

The LTM4668AIY#PBF is a quad DC/DC step-down µModule (micromodule) regulator from Analog Devices, featuring four configurable 1.2A output channels. Operating over a wide input voltage range of 2.7V to 17V, it supports output voltages from 0.6V to 5.5V, making it suitable for a variety of low-voltage power rails.
This regulator integrates switching controllers, power FETs, inductors, and support components in a compact 6.25mm × 6.25mm × 2.1mm BGA package. Outputs can be paralleled to achieve up to 4.8A capability. The device includes features such as frequency synchronization, PolyPhase operation, selectable Burst Mode operation, and 100% duty cycle capability.
Fault protection includes overvoltage, overcurrent, and overtemperature protection. The LTM4668AIY#PBF is designed for surface mount assembly and is offered with RoHS-compliant terminal finish. It is ideal for telecom, networking, and industrial equipment requiring multiple low-voltage, high-current rails.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.75 | $22.75 |
| 10+ | $17.23 | $17.23 |
| 25+ | $16.35 | $16.35 |
| 260+ | $14.18 | $14.18 |
| 520+ | $13.92 | $13.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 17V.
The output voltage is adjustable from 0.6V to 5.5V.
It has four outputs, each capable of 1.2A DC current.
The operating temperature range is -40°C to 125°C.
It comes in a 49-BGA package measuring 6.25mm x 6.25mm x 2.1mm.
Yes, it is listed as RoHS3 compliant.
