| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,180 pcs
|
2180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| SVHC Present | |
| Type |
The LTM4628IV#PBF is a dual output step-down DC-DC µModule regulator from Analog Devices Inc. This complete non-isolated point-of-load (PoL) converter delivers two adjustable output voltages, each capable of up to 8A, from an input voltage range of 4.5V to 26.5V.
Key electrical specifications include an input voltage range of 4.5V to 26.5V and dual outputs adjustable from 0.6V to 5.5V, with each output supporting up to 8A of current. The device operates reliably within a temperature range of -40°C to 125°C.
Integrated features include Overcurrent Protection (OCP), Overvoltage Protection (OVP), and Undervoltage Lockout (UVLO) for enhanced safety and system reliability. The module is designed for easy surface mounting and comes in a compact 144-LGA package.
This regulator is suitable for ITE (Information Technology Equipment) and commercial applications, offering a compact and efficient power solution for high-density board layouts.
The input voltage range is 4.5V to 26.5V.
The output voltage is adjustable from 0.6V to 5.5V on both outputs.
Each output can deliver up to 8A.
It has two independent outputs.
The operating temperature range is -40°C to 125°C.

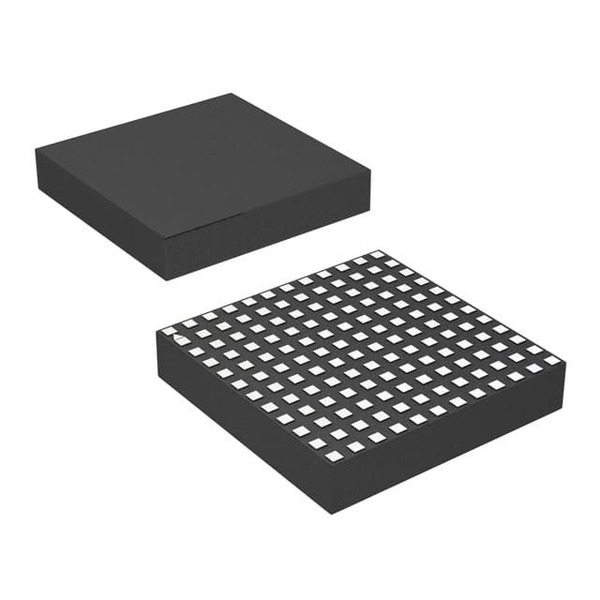

It is available in a 144-LGA (Land Grid Array) package measuring 15.0mm x 15.0mm x 4.3mm.
It includes overcurrent protection (OCP), overvoltage protection (OVP), and undervoltage lockout (UVLO).
