| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage Range | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Range | |
| SVHC Present | |
| Supplier Device Package | |
| Switching Frequency | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

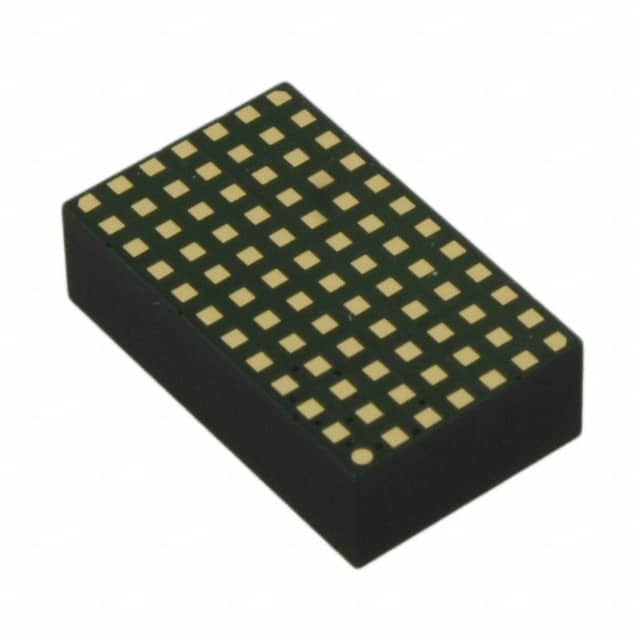

The LTM4618IV#PBF is a complete 6A DC/DC µModule regulator from Analog Devices. It operates from an input voltage range of 4.5V to 26.5V and provides an adjustable output voltage from 0.8V to 5V, set by a single external resistor. The module integrates the switching controller, power FETs, inductor, and support components in a compact 15mm x 9mm x 4.3mm LGA package.
With a switching frequency ranging from 250kHz to 780kHz, the device achieves fast transient response and supports frequency synchronization for noise-sensitive applications. Output voltage tracking enables supply rail sequencing. Protection features include overcurrent, overvoltage, short-circuit, and undervoltage lockout. Burst Mode operation is selectable for light load efficiency.
Designed for commercial ITE applications, this surface-mount module operates over a -40°C to 125°C temperature range. It is RoHS3 compliant and REACH unaffected (unverified). The 84-pin LGA package allows for high-density board layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.26 | $28.26 |
| 10+ | $27.80 | $27.80 |
| 25+ | $26.76 | $26.76 |
| 100+ | $26.26 | $26.26 |
| 170+ | $25.56 | $25.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 26.5V
0.8V to 5V
84-BLGA Module (15mm x 9mm)
-40°C to 125°C
Yes, RoHS3 compliant (unverified).
6A continuous with 8A peak.
250kHz to 780kHz.
