| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Voltage Max | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage (Adjustable Range) | |
| Output Voltage - Nominal | |
| Package Style | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

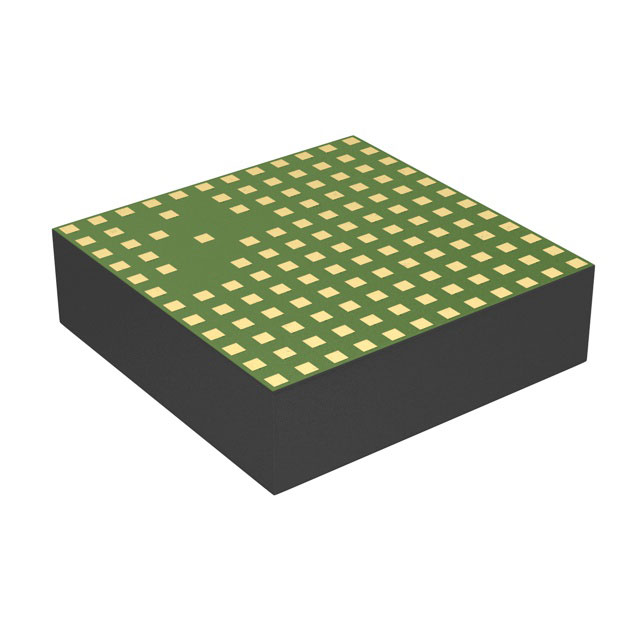

The LTM4613IV#PBF is a complete, ultralow noise, 8A switch mode DC/DC power supply from Analog Devices Inc. This µModule regulator integrates the switching controller, power FETs, inductor, and all support components into a compact 15mm × 15mm × 4.3mm 133-LGA package. It operates over a wide input voltage range of 5V to 36V and supports an adjustable output voltage from 3.3V to 15V, set by a single external resistor.
This module features high efficiency up to 96% and an adaptive on-time current mode architecture for fast transient response. It includes output voltage tracking and margining, PLL frequency synchronization, and power good indication. The onboard input filter and noise cancellation circuits achieve low noise coupling and help meet EN55022 Class B EMI standards.
The LTM4613IV#PBF is designed for surface mount assembly and operates over a -40°C to 125°C temperature range, making it suitable for commercial ITE applications requiring a compact, high-performance power solution.
The nominal output voltage is 12V, with an adjustable range of 3.3V to 15V.
The maximum output current is 8A.
The input voltage range is 5V to 36V.
It comes in a 133-BLGA Module package, also specified as 133-LGA (15x15mm).
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS3 compliant as verified by the datasheet.
The typical efficiency is 96%.
