| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
205 pcs
|
205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |
The LTM4601AEV#PBF is a non-isolated point-of-load (PoL) DC DC converter module from Analog Devices Inc./Maxim Integrated. It provides a single regulated output with an adjustable voltage range of 0.6V to 5V and can deliver up to 12A of continuous current. The module operates from a minimum input voltage of 4.5V and achieves a typical efficiency of 95%, minimizing power loss in demanding applications.
This device includes overvoltage protection (OVP), short circuit protection (SCP), and under-voltage lockout (UVLO) for reliable operation. It is designed for commercial ITE (Information Technology Equipment) applications and can operate over a temperature range of -40°C to 85°C.

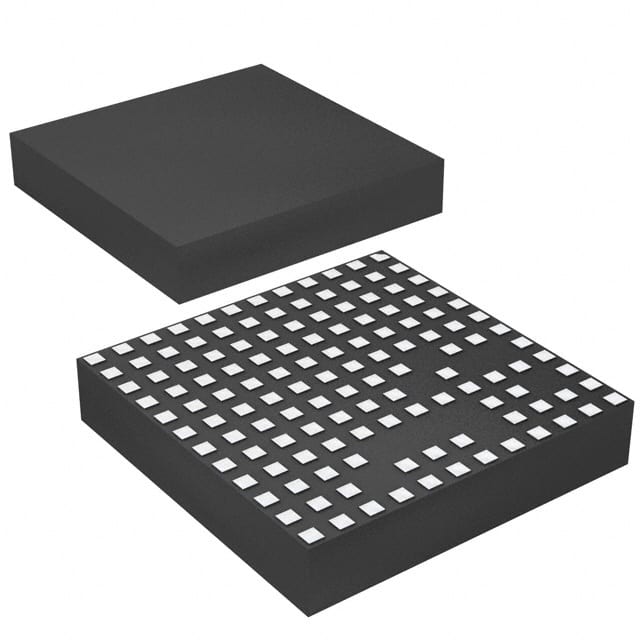

The module is housed in a compact 133-BLGA package (15.0mm x 15.0mm x 2.8mm) with a 133-LGA (15x15) supplier device package. It is surface mountable, making it suitable for space-constrained designs. The high efficiency and adjustable output make it ideal for powering FPGAs, DSPs, and other low-voltage digital loads.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.08 | $38.08 |
| 10+ | $37.08 | $37.08 |
| 25+ | $36.04 | $36.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.6V to 5V nominal.
133-BLGA Module, 15.0mm x 15.0mm x 2.8mm (0.59" x 0.59" x 0.11").
-40°C to 85°C.
The part is listed as RoHS3 Compliant, but this status is unverified.
95%.
12A.
Overvoltage protection (OVP), short circuit protection (SCP), and under-voltage lockout (UVLO).
