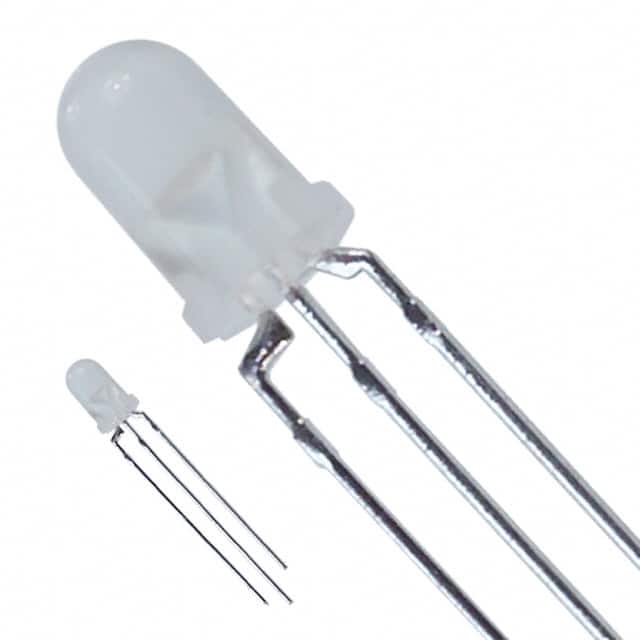

LTL-30EHJ The Lite-On Inc. LTL-30EHJ is a dual color LED, emitting both Green and Red light. It features Through Hole mounting and a T-1 3/4 package.
Mfr Part #:

LTL-30EHJ

Available from 1 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Lite-On Inc. LTL-30EHJ is a dual color LED, emitting both Green and Red light. It features Through Hole mounting and a T-1 3/4 package.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.08

LTL-30EHJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LTL-30EHJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height
Height (Max)
Lead Style
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

LTL-30EHJ Description

Short technical summary and product information.

This Lite-On Inc. LTL-30EHJ is a discrete LED component designed for indication purposes. It offers dual color output, providing both Green and Red light emission. The LED operates with a forward voltage of 2.1V for Green and 2V for Red, with a typical current rating of 20mA for both colors.



The component is designed for Through Hole mounting and comes in a T-1 3/4 package with radial leads. Its lens is diffused and white, with a round, domed top style. The typical viewing angle is 30 degrees. Key specifications include a height of 8.60mm maximum, with specific wavelengths for each color: 565nm for Green and 630nm for Red. The luminous intensity is rated at 29mcd for Green and 40mcd for Red.



This LED is suitable for various applications requiring visual indication with two distinct color options. Its common cathode configuration simplifies integration into electronic circuits.

LTL-30EHJ Quick Information

Product Type: LED
Canonical Name: Lite-On Inc. LTL-30EHJ Dual Color LED
Subcategory: Discrete LEDs

LTL-30EHJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LTL-30EHJ Estimated Pricing

Qty Low High
1+ $0.08 $0.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

LTL-30EHJ Features

  • Dual color Green and Red LED.
  • Through Hole mounting type.
  • T-1 3/4 package size.
  • Typical 20mA current rating.
  • Common cathode configuration.

LTL-30EHJ Applications

  • Used as indicator lights in electronic devices.
  • Suitable for status indication in control panels.
  • Ideal for visual signaling in consumer electronics.
  • Applied in low-voltage illumination and display systems.

LTL-30EHJ FAQs

6 frequently asked questions generated from this part’s specifications.
What are the forward voltage ratings for the LTL-30EHJ LED?

The forward voltage is 2.1V for Green and 2V for Red.

What is the typical current rating for this LED?

The typical current rating is 20mA for both Green and Red colors.

What is the wavelength of the Green and Red light emitted?

The wavelength is 565nm for Green and 630nm for Red.

What is the luminous intensity for the Green and Red LEDs?

The luminous intensity is 29mcd for Green and 40mcd for Red.

How is the LTL-30EHJ LED mounted?

It is designed for Through Hole mounting.

What is the package type for this LED?

The package is Radial - 3 Leads, with a supplier package size of T-1 3/4.
