| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| LED Color | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

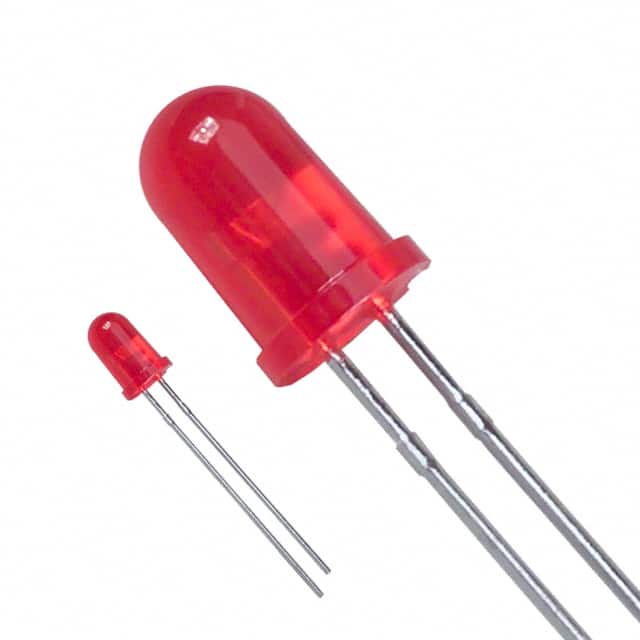

This Lite-On LTL-307P is a discrete red LED designed for through-hole mounting. It features a 5mm diffused lens with a round, domed top, providing a viewing angle of 50 degrees. The LED operates with a typical forward voltage of 2.6V and a maximum forward current rating of 60mA, with a typical current of 20mA. Its typical luminous intensity is rated at 5.6mcd, with a dominant wavelength of 697nm. The maximum power dissipation is 40mW. The component is supplied in a radial package and is RoHS3 compliant.
This LED is suitable for various indicator applications where a red light output is required. Its through-hole mounting makes it easy to integrate into breadboards or through-hole PCBs. The diffused lens ensures a softer light output, suitable for general indication purposes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage for the Lite-307P LED is 2.6V.
The maximum forward current for the Lite-On LTL-307P is 60mA.
The viewing angle for the Lite-On LTL-307P is 50 degrees.
The Lite-On LTL-307P is a 5mm through-hole LED supplied in a radial package.
Yes, the Lite-On LTL-307P is RoHS3 compliant.
